SELECT A DIAGRAM

01 - Oven

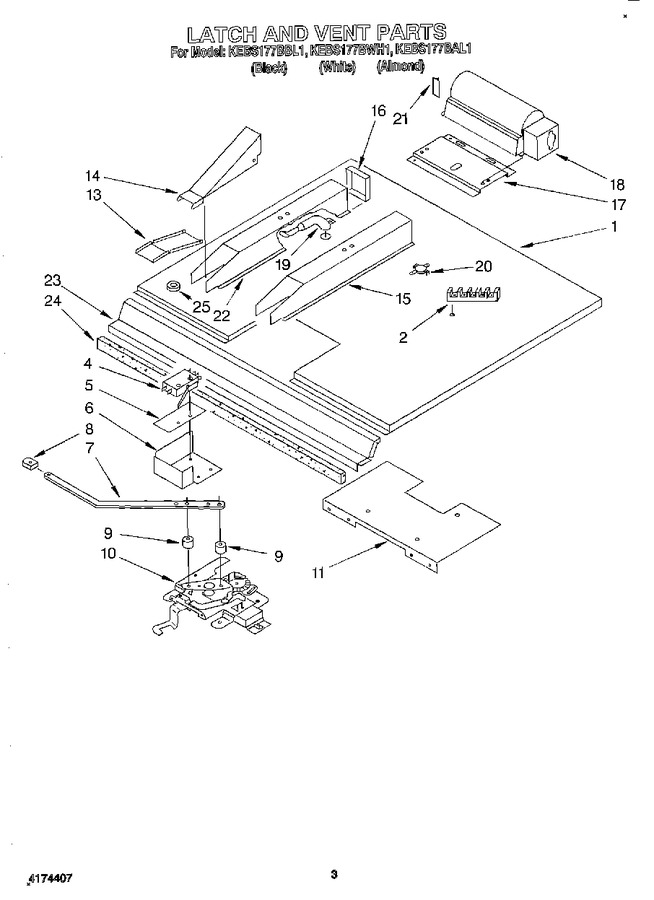

02 - Latch And Vent


03 - Control Panel, Literature


04 - Oven Door


05 - Oven Liner


06 - Convection Fan, Optional


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183748		Module, Top		Appelez-nous	-
2	308043		Screw		Appelez-nous	-
2	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
4	3178668		Switch, Latch		Appelez-nous	-
4	98106		Screw		Appelez-nous	-
4	254225		Screw,		Appelez-nous	-
5	3178185		Insulator, Switch		Appelez-nous	-
6	3177662		Guard, Switch		Appelez-nous	-
7	3177969		Handle, Latch		Appelez-nous	-
8	3183294		Screw		Appelez-nous	-
8	3184039		Knob, Latch Handle		Appelez-nous	-
9	3184037		Screw (2)		Appelez-nous	-
9	3184040		Spacer, Latch Handle		Appelez-nous	-
9	3179116		Screw		Appelez-nous	-
10	3178410		Latch, Mechanism		Appelez-nous	-
11	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
11	3177496		Plate, Mounting		Appelez-nous	-
13	3183954		Nozzle, Vent Bottom		Appelez-nous	-
14	3183955		Nozzle, Vent Top		Appelez-nous	-
15	4173231		Screw		Appelez-nous	-
15	3183999		Box, Vent		Appelez-nous	-
16	3185647		Screw		Appelez-nous	-
16	3183964		End, Vent Box		Appelez-nous	-
17	3183533		Bracket, Mounting Fan		Appelez-nous	-
17	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
18	3183720		Blower, Fan		Appelez-nous	-
19	3183791		Tube, Vent		Appelez-nous	-
20	3185647		Screw		Appelez-nous	-
20	3149650		Spst Thermostat		Appelez-nous	-
21	3185455		Baffle		Appelez-nous	-
21	311773		Screw		Appelez-nous	-
22	3183953		Box, Vent		Appelez-nous	-
23	3183785		Shield, Heat		Appelez-nous	-
24	313755		Seal, Foam		Appelez-nous	-
25	4159035		Bushing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
