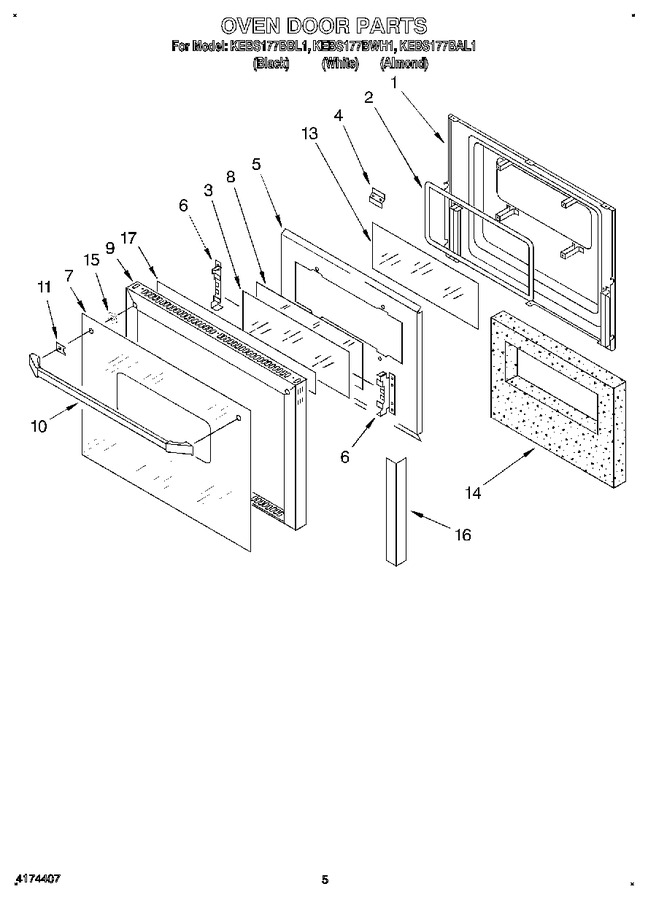

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185497		Liner, Door		Appelez-nous	-
2	3185462		Gasket, Window		Appelez-nous	-
3	3185459		Glass, Clear		Appelez-nous	-
4	3185438		Latch, Strike		Appelez-nous	-
5	4168863		Screw		Appelez-nous	-
5	3188815		Retainer, Insulation		Appelez-nous	-
6	3185647		Screw (4)		Appelez-nous	-
6	3185439		Bracket, Glass Mounting (2)		Appelez-nous	-
7	3187867		Glass, Door (almond Model)		Appelez-nous	-
7	3187865		Glass, Door (white Model)		Appelez-nous	-
7	3187863		Glass, Door (black Model)		Appelez-nous	-
8	3185458		Glass, Reflective		Appelez-nous	-
9	3187850		Frame, Door (black Model)		Appelez-nous	-
9	3187852		Frame, Door (white Model)		Appelez-nous	-
9	3187854		Frame, Door (almond Model)		Appelez-nous	-
10	3185986		Handle, Door (black Model)		Appelez-nous	-
10	3181637		Handle, Door (screw (2))		Appelez-nous	-
10	3185988		Handle, Door (almond Model)		Appelez-nous	-
10	3185987		Handle, Door (white Model)		Appelez-nous	-
11	3182138		Spacer, Door Handle		Appelez-nous	-
13	3185457		Glass, Clear		Appelez-nous	-
14	3185460		Insulation, Door		Appelez-nous	-
14	3178001		Screw, Black (2)		Appelez-nous	-
15	342043		Screw		Appelez-nous	-
15	3188599		Bushing		Appelez-nous	-
16	3188635		Foil-adhesive		Appelez-nous	-
17	3188633		Foil, Adhesive		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
