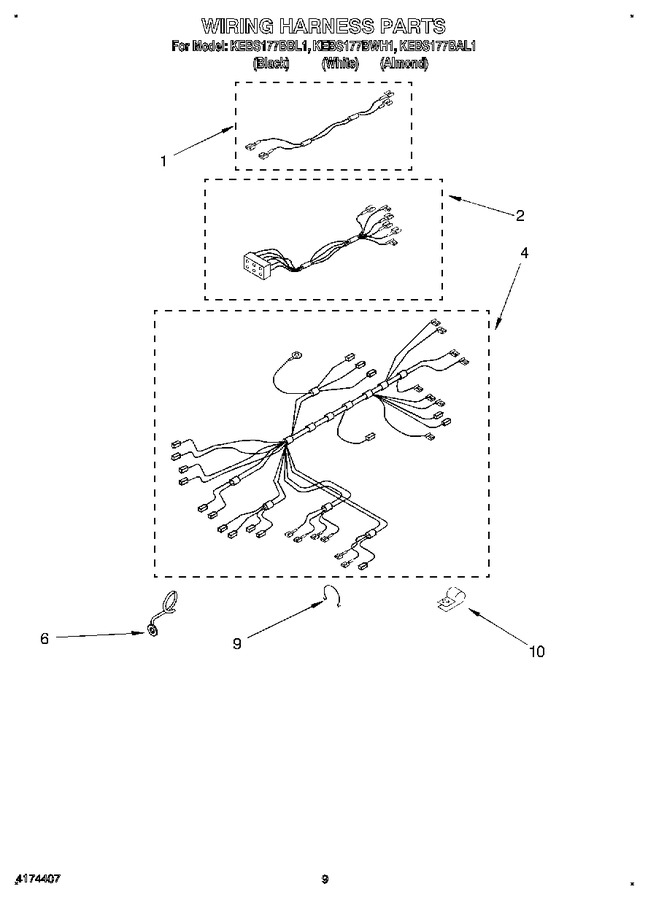

07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3187607 | Harness Wire Door Light Switch |
|
- | |||||
| 2 | 3185952 | Harness, Wire (latch Assy.) |
|
- | |||||
| 4 | 3185949 | Harness Wire Main |
|
- | |||||
| 6 | 3179668 | Standoff, Wire |
|
- | |||||
| 9 | 16515 | Clip (Replaces: 313438) |
|
$ 17.60 | |||||
| 10 | 3184792 | Clamp, Wire |
|
- | |||||
| 10 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 |
