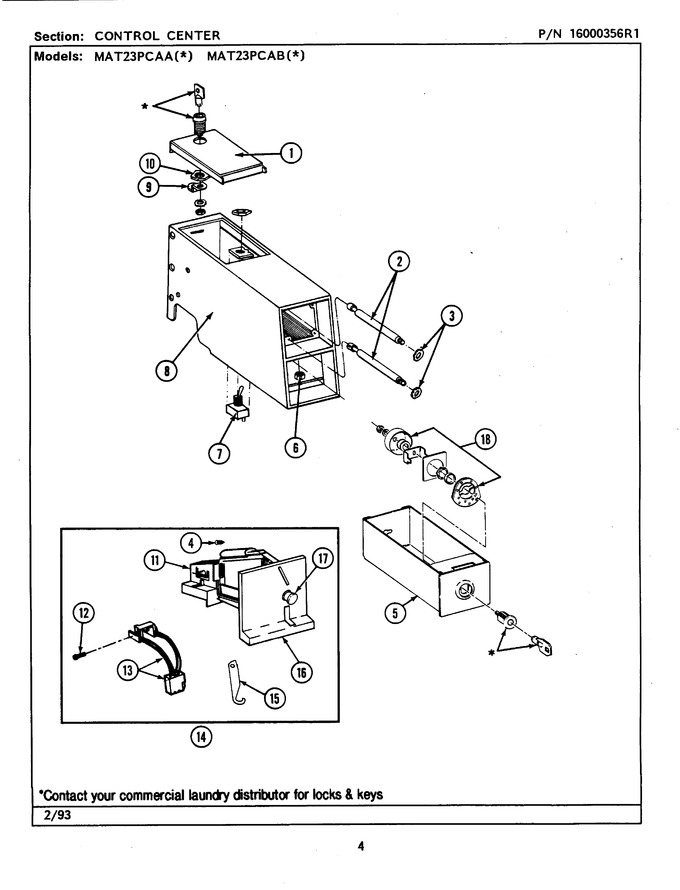

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 203188 | Door, Access (wht) | B4 |
|
- | ||||
| 001 | 203188L | (alm) | B4 |
|
- | ||||
| 001 | 203188M | (hwt) | B4 |
|
- | ||||
| 002 | 213035 | Bolt, Locking | B4 |
|
$ 5.84 | ||||
| 003 | 910181 | Washer, Lock | B4 |
|
- | ||||
| 004 | NLA | Screw | B4 |
|
- | ||||
| 005 | 207912 | Box, Coin Camlock (wht) | B4 |
|
- | ||||
| 005 | 207912L | (alm) | B4 |
|
- | ||||
| 005 | NLA | (hwt) | B4 |
|
- | ||||
| 006 | WP62739 | Nut, Hex (Replaces: Y052740) | B4 |
|
$ 6.85 | ||||
| 007 | 206794 | Switch (w/nut) | B4 |
|
- | ||||
| 008 | 207940 | Case, Control Center (wht) | B4 |
|
- | ||||
| 008 | 207940L | (alm) | B4 |
|
- | ||||
| 008 | NLA | (hwt) | B4 |
|
- | ||||
| 009 | W11165684 | Tab, Locking (Replaces: 213750) | B4 |
|
$ 8.20 | ||||
| 010 | W11395752 | Nut, Hex (Replaces: 212328) | B4 |
|
$ 11.74 | ||||
| 011 | 207947 | Rejector, Coin (25 Cents) | B4 |
|
- | ||||
| 012 | WP3395530 | Screw (Replaces: 314665) | B4 |
|
$ 6.93 | ||||
| 013 | 206799 | Switch, Optic | B4 |
|
$ 113.64 | ||||
| 014 | 207948 | Coin Drop Assembly (25 Cents) | B4 |
|
- | ||||
| 015 | 216011 | Spring, Button | B4 |
|
- | ||||
| 016 | 216010 | Plate, Mounting (25 Cents) | B4 |
|
- | ||||
| 017 | 216009 | Button, Return | B4 |
|
- | ||||
| 018 | NLA | Camlock Assembly | B4 |
|
- |
