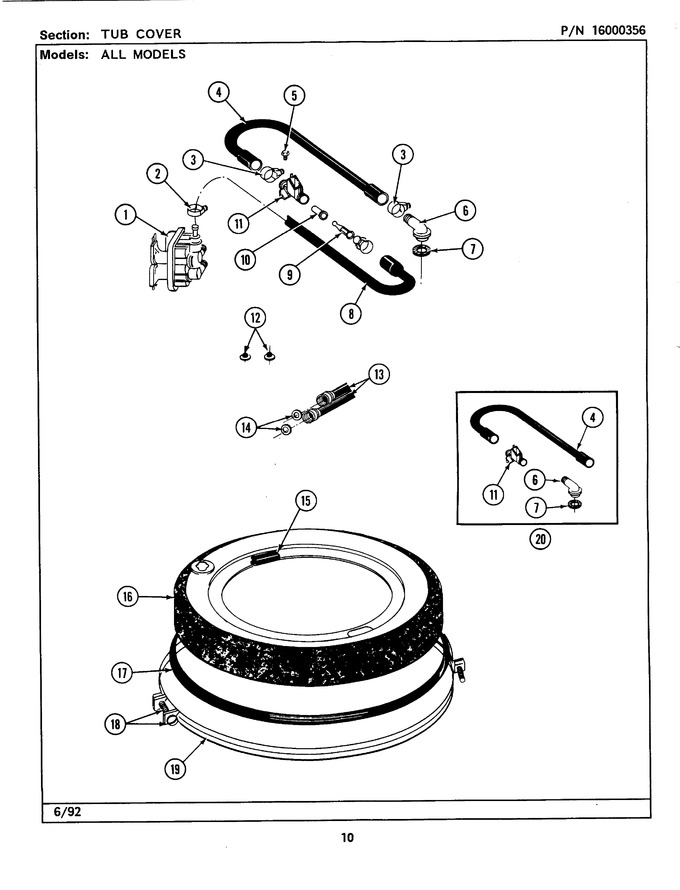

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Control Center
03 - Top
04 - Cabinet
05 - Tub Cover
06 - Tub
07 - Transmission
08 - Base
09 - Brake & Rotor
10 - Motor & Pump
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 205613 | Valve, Water (Replaces: 205614) | B4 |
|
Immediately | $ 103.57 | |||
| 002 | WP596669 | Clamp, Hose (Replaces: 201575) | B4 |
|
Immediately | $ 7.56 | |||
| 003 | WP596669 | Clamp, Hose (Replaces: 202515) | B4 |
|
Immediately | $ 7.56 | |||
| 004 | WPY215234 | Hose, Injector Fill (Replaces: Y215234) | B4 |
|
$ 83.54 | ||||
| 005 | 312620 | Screw | B4 |
|
- | ||||
| 006 | 215235 | Tube, Injector | B4 |
|
$ 16.14 | ||||
| 007 | 215233 | Seal, Injector Tube | B4 |
|
$ 5.84 | ||||
| 008 | WP213013 | Hose, Injector (Replaces: 213013) | B4 |
|
Immediately | $ 44.40 | |||
| 009 | WP213015 | Nozzle, Injector (Replaces: 213015) | B4 |
|
Immediately | $ 7.29 | |||
| 010 | WP216201 | Valve, Injector (Replaces: 213016) | B4 |
|
Immediately | $ 18.88 | |||
| 011 | WP215447 | Sleeve, Injector (Replaces: 215447) | B4 |
|
Immediately | $ 7.32 | |||
| 012 | 200961 | Washer, Screen | B4 |
|
- | ||||
| 013 | WP89503 | Hose, 5 Ft (w/straight Ends) (Replaces: 205828) | B4 |
|
Immediately | $ 21.68 | |||
| 014 | Y013783 | Washer | B4 |
|
$ 18.72 | ||||
| 015 | 215232 | Bumper, Unbalance | B4 |
|
- | ||||
| 016 | 206380 | Cover, Tub | B4 |
|
- | ||||
| 017 | WP211232 | Seal, Tub Cover (Replaces: 211232) | B4 |
|
$ 62.96 | ||||
| 018 | 205529 | Nut & Bolt Kit | B4 |
|
$ 6.58 | ||||
| 019 | 200846 | Clamp - Tub Cover | B4 |
|
$ 62.11 | ||||
| 020 | WP206680 | Injector Hose Kit (Replaces: 206683) | B4 |
|
Immediately | $ 76.98 |
