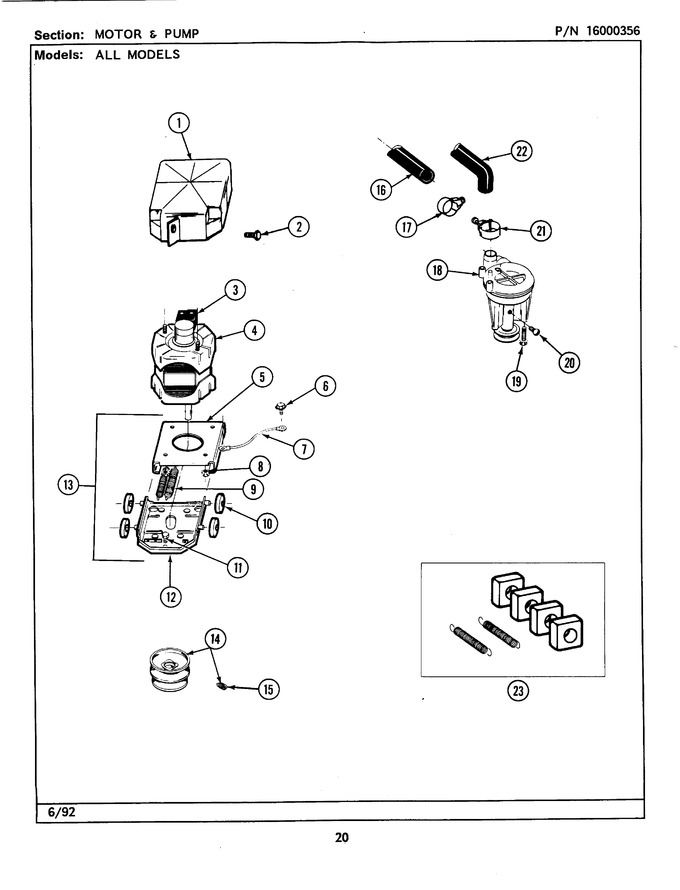

10 - Motor & Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	215098		Shield, Motor	B4	Appelez-nous	-
002	WPW10346892		Screw   (Replaces: 213121)	B4		Immediately	$ 6.47
003	205132		Switch, Motor External Start (product Id. No. 2-1664-4,	B4	Appelez-nous	-
003	205133		(prod. Idno. 2-1664-8 & 2-5463)		Appelez-nous	-
003	206505		(prod. No. 2-1664-11, 2-1664-13)		Appelez-nous	-
003	NLA		Switch, Motor External Start	B4	Appelez-nous	-
004	12002351		Motor (one Speed)   (Replaces: 201805)	B4		Immediately	$ 170.98
005	214956		Motor Mount Assembly (upr)	B4	Appelez-nous	-
006	WP489128		Screw   (Replaces: 210186)	B4			$ 9.79
007	901220		Ground Wire	B4	Appelez-nous	-
008	WP3400029		Nut, Keps   (Replaces: Y311426)	B4		Immediately	$ 6.98
009	202718		Springs, Motor	B4		Immediately	$ 200.35
010	205000		Roller Kit   (Replaces: Y204998)	B4			$ 62.00
011	Y313561		Screw	B4			$ 5.27
012	205908		Motor Mount Assembly (lwr)	B4	Appelez-nous	-
013	205999		Motor Mount Assembly (comp.)	B4			$ 61.84
014	200816		Pulley, Motor (w/set Screw)	B4	Appelez-nous	-
015	Y053241		Screw, Set	B4	Appelez-nous	-
016	215057		Hose, Pump	B4	Appelez-nous	-
017	WP285655		Clamp, Hose   (Replaces: 200461)	B4		Immediately	$ 7.55
018	202203		Pump As Pak	B4	Appelez-nous	-
019	WPY014874		Screw, Pump   (Replaces: 211880)	B4			$ 6.98
020	WP3390631		Screw, Bearing Insert   (Replaces: Y015408)	B4			$ 7.04
021	WP3367052		Clamp, Hose   (Replaces: 202574)	B4			$ 7.49
022	WP213045		Hose, Outer Tub   (Replaces: 213045)	B4		Immediately	$ 43.57
023	205000		Roller & Spring Kit	B4			$ 62.00
