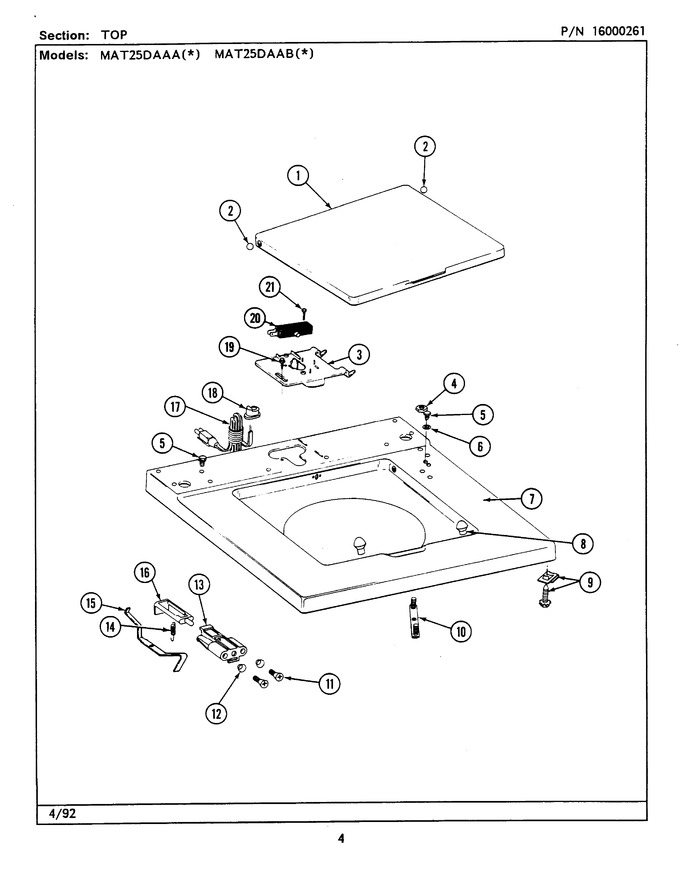

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	214901		Lid (wht)	A1	Appelez-nous	-
001	NLA		(alm)	A1	Appelez-nous	-
002	WP211726		Ball, Lid Hinge   (Replaces: 211726)	A1		Immediately	$ 7.18
003	22001678		Bracket, Switch   (Replaces: Y215699)	A1			$ 28.61
004	WP62739		Nut, Hex   (Replaces: Y052740)	A1			$ 6.85
005	WP90767		Screw   (Replaces: 211294)	A1		Immediately	$ 7.04
006	910309		Washer	A1	Appelez-nous	-
007	207173		Top Assembly (wht)	A1	Appelez-nous	-
007	NLA		(alm)	A1	Appelez-nous	-
008	WP212716		Bumper, Lid   (Replaces: 212716)	A1		Immediately	$ 7.88
009	204445		Screw & Fastener Assembly	A1	Appelez-nous	-
010	NLA		Strap, Mounting	A1	Appelez-nous	-
011	W10756178		Screw   (Replaces: 910182)	A1			$ 5.39
012	211500		Washer, Nylon	A1	Appelez-nous	-
013	204968		Plunger & Bracket Assembly	A1			$ 26.05
013	NLA		Plunger & Bracket Kit	B8	Appelez-nous	-
014	WP213720		Spring, Lid Switch   (Replaces: 213720)	A1			$ 7.63
015	215704		Lever, Unbalance	A1	Appelez-nous	-
016	216255		Plunger, Unbalance	B8			$ 5.84
016	NLA		Plunger, Lid Switch	A1	Appelez-nous	-
017	204590		Cord, Power	A1			$ 61.20
018	211881		Grommet	A1	Appelez-nous	-
019	W11233072		Screw   (Replaces: 207159)	A1		Immediately	$ 12.62
020	206415		Switch, Lid	A1			$ 37.51
021	213501		Screw	A1			$ 12.03
