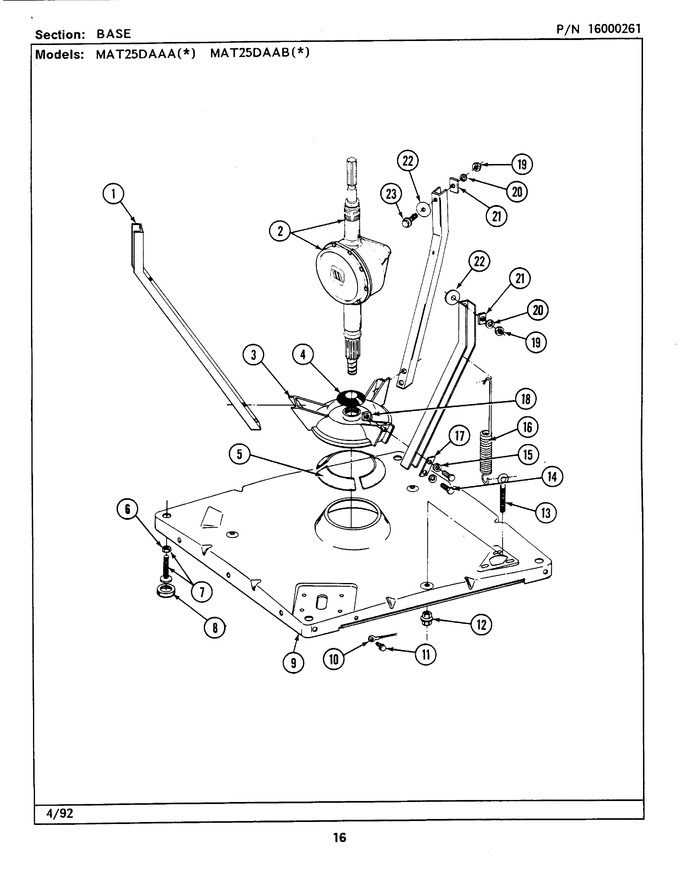

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	213100		Brace, Tub	A1	Appelez-nous	-
002	206708		Transmission (complete)	A1	Appelez-nous	-
003	1N4004		Damper W/bolt & Clip   (Replaces: 203725)	A1	Appelez-nous	-
004	211028		Deflector, Water	A1	Appelez-nous	-
005	203956		Damper Pad Kit	A1		Immediately	$ 47.33
006	WP210385		Nut, Lock   (Replaces: 210385)	A1			$ 6.26
007	22003428		Leg, Adjustable (w/nut)   (Replaces: Y302699)	A1		Immediately	$ 14.41
008	WP210684		Foot, Rubber   (Replaces: 210684)	A1		Immediately	$ 14.09
009	203274		Base W/damper Pads	A1	Appelez-nous	-
010	204807		Ground Wire	A1	Appelez-nous	-
011	WP489128		Screw   (Replaces: 210186)	A1			$ 9.79
012	WP211949		Nut, Adjustment Eyebolt   (Replaces: 211949)	A1			$ 6.88
013	W11129403		Eyebolt   (Replaces: 213120)	A1			$ 12.23
014	Y015627		Screw, Hex Hd Cap 5/16 X 5/8	A1			$ 8.15
015	911852		Washer, Lock	A1	Appelez-nous	-
016	213054		Spring, Centering	A1	Appelez-nous	-
017	213073		Washer, Double Brace	A1	Appelez-nous	-
018	Y052785		Nut, Brace (damper)	A1	Appelez-nous	-
019	Y052734		Nut, Brace (tub)	A1	Appelez-nous	-
020	Y054867		Washer, Lock	A1	Appelez-nous	-
021	212979		Washer	A1			$ 91.61
022	211100		Washer, Cushion	A1	Appelez-nous	-
023	W10175939		Bolt & Gasket Assembly (short)   (Replaces: 200744)	A1			$ 7.79
023	W10175938		(long)   (Replaces: 205254)	A1		Immediately	$ 7.00
