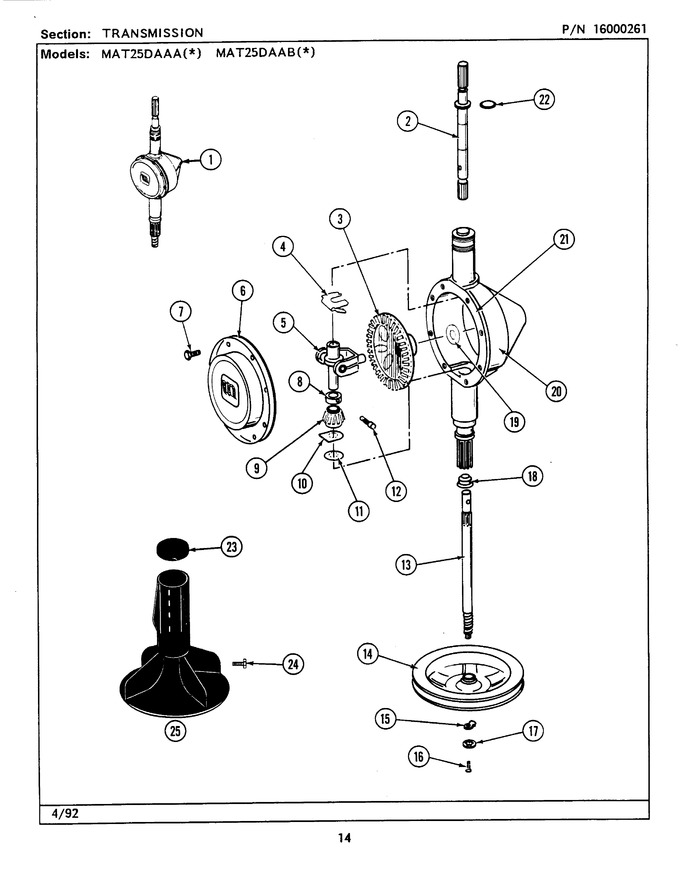

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	206708		Transmission (complete)	A1	Appelez-nous	-
002	207153		Shaft, Agitator (w/spring)	A1	Appelez-nous	-
003	206713		Gear, Bevel	A1	Appelez-nous	-
004	WP215581		Spring, Agitator   (Replaces: 215581)	A1			$ 7.47
005	206685		Torque Block & Yoke	A1	Appelez-nous	-
006	206628		Cover, Transmission	A1	Appelez-nous	-
007	215417		Screw, Transmission Cover	A1	Appelez-nous	-
008	215415		Collar (lwr)	A1	Appelez-nous	-
009	WPW10221114		Pinion   (Replaces: 215401)	A1			$ 58.63
010	WP215395		Plate, Clutch   (Replaces: 215395)	A1		Immediately	$ 6.79
011	WP6-2114830		Washer, Splined   (Replaces: 211483)	A1			$ 7.05
012	WPY206629		Pin, Collar   (Replaces: Y206629)	A1			$ 7.88
013	NLA		Shaft, Center	A1	Appelez-nous	-
014	WP6-2301530		Pulley, Drive   (Replaces: 211059)	A1			$ 178.73
015	WP211089		Lug, Stop Pulley   (Replaces: 211089)	A1			$ 10.16
016	WP912618		Screw, Stop Lug   (Replaces: 211375)	A1			$ 6.98
017	WP22003555		Washer, Bevel Gear   (Replaces: 211090)	A1			$ 19.26
018	206602		Seal, Lip	A1	Appelez-nous	-
019	215394		Washer, Bevel Gear	A1	Appelez-nous	-
020	206625		Housing, Transmission	A1	Appelez-nous	-
021	W10841140		Sealant, Silastic Adhesive   (Replaces: Y058700)	A1		Immediately	$ 24.92
022	210690		Seal, Rubber	A1			$ 13.19
023	215532		Cap, Agitator (blk)	A1			$ 5.65
024	206478		Screw & Washer Assembly	A1	Appelez-nous	-
025	207119		Agitator (w/lock Screw-blk)	A1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
