SELECT A DIAGRAM

02 - Upper Oven, Optional


03 - Lower Oven


04 - Control Panel, Lit/optional


05 - Upper And Lower Oven Door


06 - Latch And Vent


07 - Unit


08 - Wiring Harness

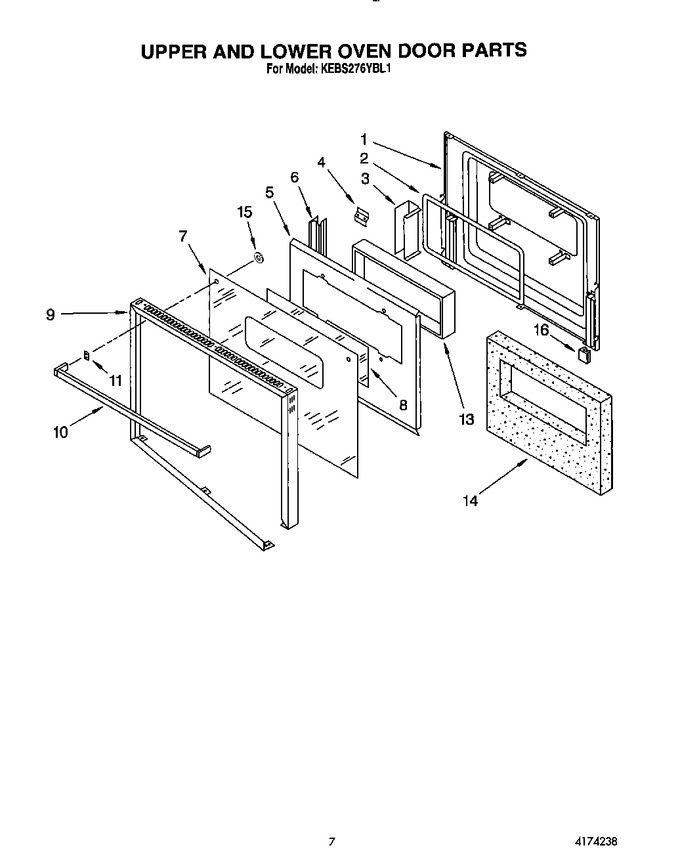

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3177599		Liner, Door		Appelez-nous	-
1	4168863		Screw (6)		Appelez-nous	-
1	3178001		Screw, Black (2)		Appelez-nous	-
2	3178584		Gasket, Window		Appelez-nous	-
3	3179693		Spacer, Window		Appelez-nous	-
4	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.04
4	3177831		Latch, Strike		Appelez-nous	-
5	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.04
5	3177718		Insulation, Retainer		Appelez-nous	-
6	3179507		Clip, Channel (top (2))		Appelez-nous	-
6	WP90767		Clip, Channel (screw (4))   (Replaces: 300890)			Immediately	$ 7.04
6	3179506		Clip, Channel (bottom (2))		Appelez-nous	-
7	3181548		Glass, Door		Appelez-nous	-
8	4164243		Glass, Reflective		Appelez-nous	-
9	3181402		Frame, Door		Appelez-nous	-
10	3182165		Handle, Door		Appelez-nous	-
10	3181637		Screw (2)		Appelez-nous	-
11	3182138		Spacer (2)		Appelez-nous	-
13	4164235		Window Package		Appelez-nous	-
14	3180094		Insulation, Door		Appelez-nous	-
15	3181651		Bushing, Door Handle		Appelez-nous	-
16	3181701		Bumper, Door Glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
