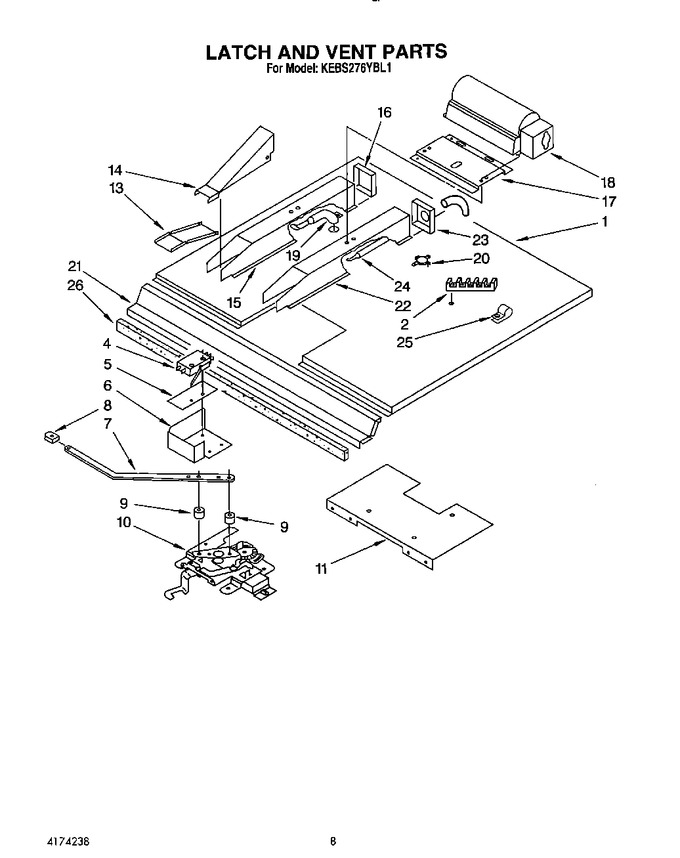

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Upper Oven, Optional
03 - Lower Oven
04 - Control Panel, Lit/optional
05 - Upper And Lower Oven Door
06 - Latch And Vent
07 - Unit
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3183748 | Module, Top |
|
- | |||||
| 2 | WP8203546 | Block, Terminal (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 2 | 308043 | Screw |
|
- | |||||
| 4 | 3183784 | Switch, Latch |
|
- | |||||
| 4 | 98106 | Screw |
|
- | |||||
| 5 | 3178185 | Insulator, Switch |
|
- | |||||
| 6 | 3177662 | Guard, Latch |
|
- | |||||
| 7 | 3177969 | Handle, Latch (upper Oven) |
|
- | |||||
| 7 | 3179950 | Handle, Latch (screw (2)) |
|
- | |||||
| 7 | 3181963 | Handle, Latch (lower Oven) |
|
- | |||||
| 7 | 3184037 | Handle, Latch (screw (2)) |
|
- | |||||
| 8 | 3183294 | Screw |
|
- | |||||
| 8 | 3184039 | Knob, Latch Handle |
|
- | |||||
| 9 | 3184037 | Screw |
|
- | |||||
| 9 | 3184040 | Spacer, Latch Handle |
|
- | |||||
| 10 | 3178410 | Latch, Mechanism |
|
- | |||||
| 11 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 11 | 3177496 | Plate, Mounting |
|
- | |||||
| 13 | 3183954 | Nozzle, Vent Bottom |
|
- | |||||
| 14 | 3183955 | Nozzle, Vent Top |
|
- | |||||
| 15 | 3183999 | Box, Vent |
|
- | |||||
| 16 | 3183964 | End, Vent Box |
|
- | |||||
| 16 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 17 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 17 | 3183533 | Bracket, Mounting |
|
- | |||||
| 18 | 3183720 | Blower, Fan |
|
- | |||||
| 19 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 19 | 3183791 | Tube, Vent |
|
- | |||||
| 20 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 20 | 3149650 | Spst Thermostat |
|
- | |||||
| 21 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 21 | 3183785 | Shield, Heat |
|
- | |||||
| 22 | 3183953 | Box, Vent |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 23 | 3183965 | End, Box Vent |
|
- | |||||
| 24 | 3183793 | Tube, Vent |
|
- | |||||
| 24 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 25 | 3183532 | Clamp, Tube |
|
- | |||||
| 25 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 26 | 313755 | Seal, Foam |
|
- |
