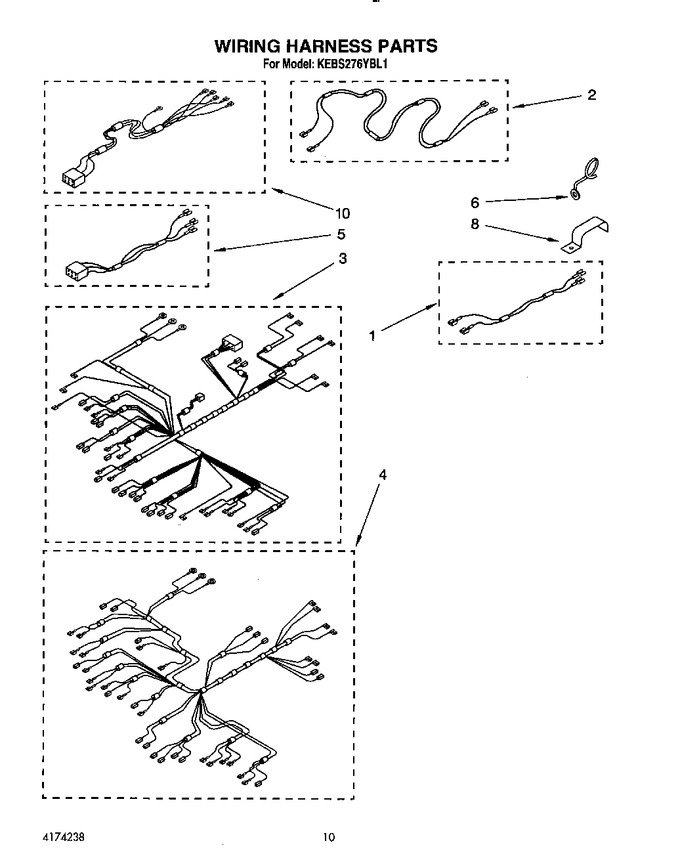

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3183655 | Harness Wire (door Switch Upper) |
|
- | |||||
| 2 | 3183656 | Harness Wire (door Switch Lower) |
|
- | |||||
| 3 | 3183359 | Harness Wire (lower Oven) |
|
- | |||||
| 4 | 3182193 | Harness Wire (upper Oven) |
|
- | |||||
| 5 | 3183976 | Harness, Wire Latch Assy. (upper) |
|
- | |||||
| 6 | 3179668 | Standoff, Wire |
|
- | |||||
| 6 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 8 | 7111P002-60 | Clamp, Wire (Replaces: 4159037) |
|
- | |||||
| 8 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.16 | |||||
| 10 | 3183361 | Harness, Wire Latch Assy. (lower) |
|
- |
