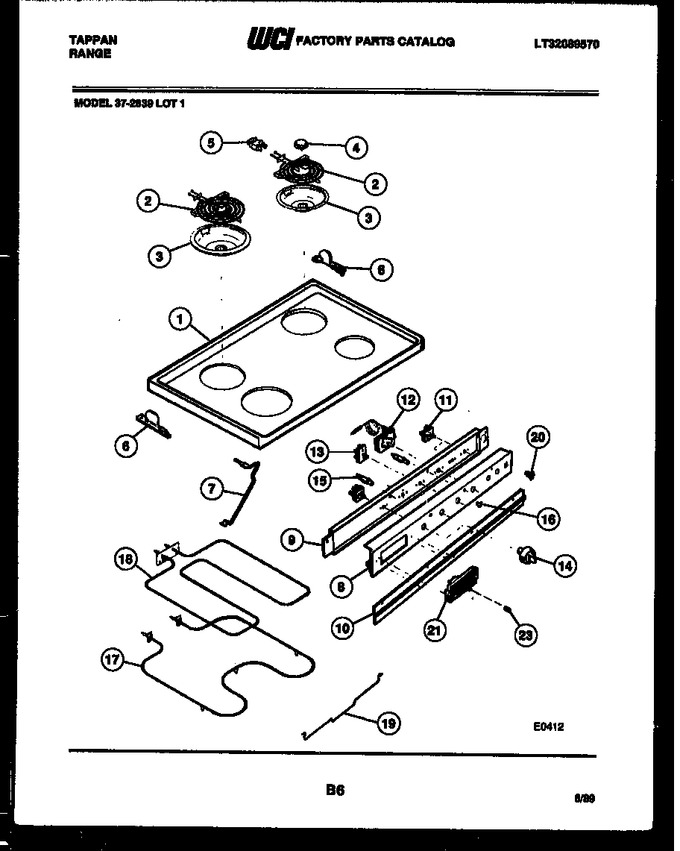

02 - Cooktop And Broiler Parts


03 - Backguard


04 - Door Parts


05 - Body Parts


06 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051476		Main Top (chrome)		Appelez-nous	-
2	3051434		Element-top Lg (2)		Appelez-nous	-
3	3013588		Pan-element Lg. (2)		Appelez-nous	-
4	3013243		Medallion (4)		Appelez-nous	-
5	3051402		Block, Terminal (4)		Appelez-nous	-
6	3131286		Brkt-hinge Lh		Appelez-nous	-
7	3013818		Top Support Rod (2)		Appelez-nous	-
8	3205002		Panel - Manifold		Appelez-nous	-
9	3205003		Plate - Inst Mounting		Appelez-nous	-
10	3204623		Extrusion-heat Shield		Appelez-nous	-
11	08010418		Switch-top Elements (4)		Appelez-nous	-
12	3202785		Thermostat		Appelez-nous	-
13	3016812		Switch-selector		Appelez-nous	-
14	3204681		Knob - Control (4)		Appelez-nous	-
15	08037896		Light - Ind 125 V (2)		Appelez-nous	-
16	08037703		Lens		Appelez-nous	-
17	316075103		Element-oven Bake   (Replaces: 3203534)			Immediately	$ 42.36
18	3051140		Element-oven Broil		Appelez-nous	-
19	3051373		Support-element		Appelez-nous	-
20	3203080		Switch - Oven Light		Appelez-nous	-
21	3204876		Clock		Appelez-nous	-
23	3131472		Knob-clock		Appelez-nous	-
14A	3204682		Knob - Thermostat		Appelez-nous	-
14B	3204680		Knob - Selector - Sw		Appelez-nous	-
15A	3091462		Light-ind 250v		Appelez-nous	-
19A	3051224		Retainer Lens (3) (non-illustrated)		Appelez-nous	-
2A	3051433		Element-top Sm (2)		Appelez-nous	-
3A	3013589		Pan-element-sm (2)		Appelez-nous	-
6A	3131287		Brkt-hinge Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
