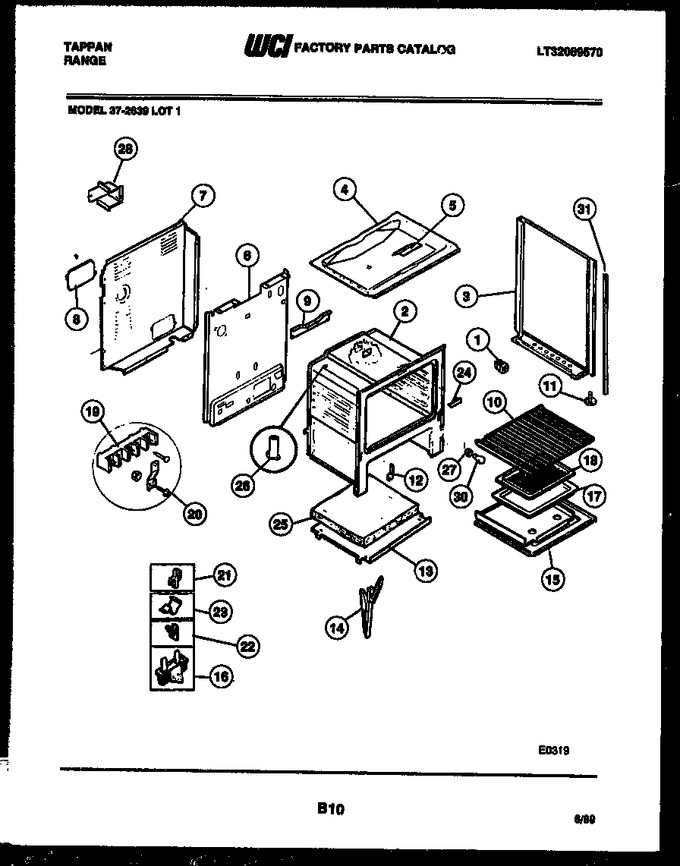

02 - Cooktop And Broiler Parts
03 - Backguard
04 - Door Parts
05 - Body Parts
06 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer, B/s (8) |
|
$ 3.62 | |||||
| 3 | 3201000 | Pnl. B/s Lh-black |
|
- | |||||
| 4 | 3051109 | Burner Box |
|
- | |||||
| 5 | 3131101 | Cover, Plate |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Shield-lower Wall |
|
- | |||||
| 8 | 3203405 | Cover-lower Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 3131973 | Rack, Oven (2) |
|
- | |||||
| 11 | 3203397 | Screw, Level (4) |
|
- | |||||
| 12 | 3131570 | Cover Hng. Cutout (2) |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lower |
|
- | |||||
| 14 | 3131569 | Channel Dr Hng (2) |
|
- | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 16 | 3051147 | Fuse-thermo Cutout |
|
- | |||||
| 17 | 3013568 | Broiler Pan |
|
- | |||||
| 18 | 3131356 | Insert, Broiler Pan |
|
- | |||||
| 19 | 3161116 | Terminal Block |
|
- | |||||
| 20 | 08011708 | Ground Strap |
|
- | |||||
| 21 | 3011805 | Clip Thermo Bulb (2) |
|
- | |||||
| 22 | 3051162 | Glide-drawer (2) |
|
Immediately | $ 8.22 | ||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 3015372 | Cover - Front Main |
|
- | |||||
| 25 | 3051390 | Insulation-bottom |
|
- | |||||
| 26 | 3051344 | Tube-oven Vent |
|
- | |||||
| 27 | 3014073 | Socket-oven Light |
|
- | |||||
| 28 | 3203582 | Shield-rear Wall |
|
- | |||||
| 30 | 3013071 | Bulb - Oven Light |
|
- | |||||
| 31 | 3051326 | Trim-vertical B/s (2) |
|
- | |||||
| *25659 | 3934056 | Anti-tip Kit |
|
- | |||||
| *25659 | 3204525 | Bracket-cable Mtg |
|
- | |||||
| *25659 | 3051367 | Cover - Rear Wall |
|
- | |||||
| *25659 | 3200846 | Fstnr - Edge Mtg (4) |
|
- | |||||
| 27A | 3017142 | Insulation, Wrap (non-illustrated) |
|
$ 193.50 | |||||
| 27B | 3203541 | Insulation, Back (non-illustrated) |
|
- | |||||
| 27C | 3131903 | Bumper |
|
$ 55.36 | |||||
| 27D | 3131143 | Screw - Hng Mtg (6) (non-illustrated) |
|
- | |||||
| 27E | 08067783 | Nut, Hex, Brass (6) (non-illustrated) |
|
- | |||||
| 3A | 3201001 | Pnl. B/s Rh-black |
|
- |
