SELECT A DIAGRAM

02 - Cooktop And Broiler Parts


03 - Backguard


04 - Door Parts


05 - Body Parts


06 - Drawer Parts

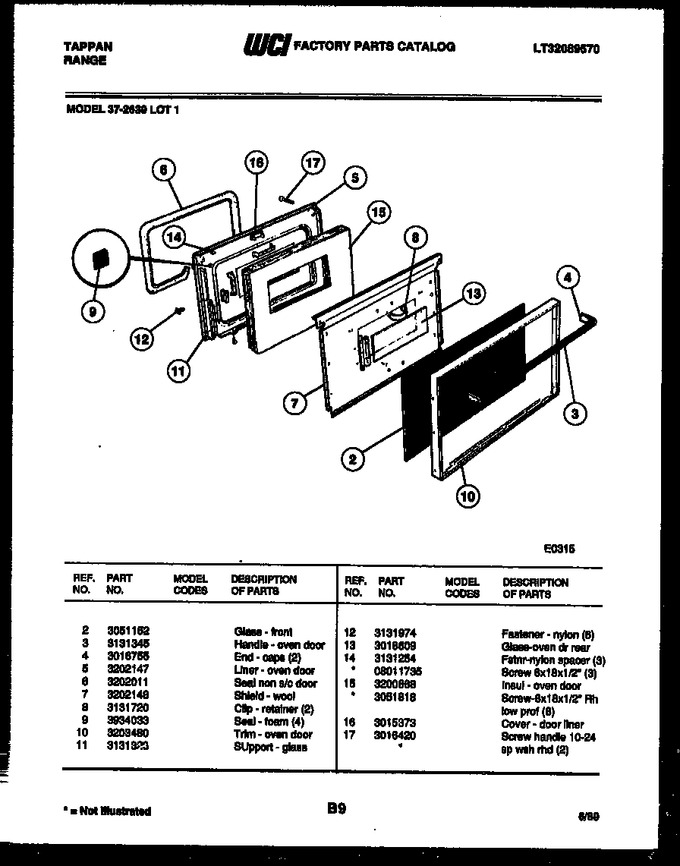

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3051152		Glass, Front		Appelez-nous	-
3	3131345		Handle, Oven Door		Appelez-nous	-
4	3016755		End Caps (2)		Appelez-nous	-
5	3202147		Liner-oven Door		Appelez-nous	-
6	3202011		Seal-non S/c Door		Appelez-nous	-
7	3202148		Shield-wool		Appelez-nous	-
8	3131720		Clip, Retainer (2)		Appelez-nous	-
9	3934033		Seal, Foam (4)		Appelez-nous	-
10	3203480		Trim, Oven Door		Appelez-nous	-
11	3131323		Support, Glass		Appelez-nous	-
12	3131974		Fastener, Nylon (6)		Appelez-nous	-
13	3018609		Glass - Oven Dr (rear)		Appelez-nous	-
14	3131254		Fstnr-nylon Spacer (3)		Appelez-nous	-
15	3200668		Insul - Oven Door		Appelez-nous	-
16	3015373		Cover-door Liner		Appelez-nous	-
17	3016420		Screw-handle 10-24 Sp Wsh Rhd (2)		Appelez-nous	-
14A	08011735		Screw-8 X 18 X 1/2`` (3) (non-illustrated)		Appelez-nous	-
15A	3051818		Screw-8 X 18 X 1/2`` Rh Low Prof (8) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
