SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Burner, Manifold And Gas Control
05 - Broiler Drawer Parts
06 - Door Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

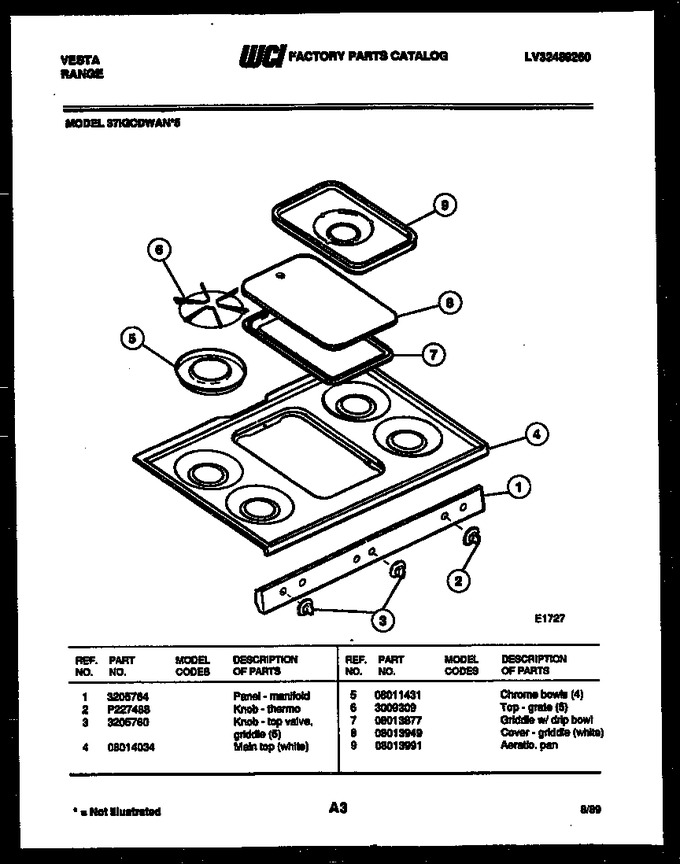

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205764 | Panel - Manifold |
|
- | |||||
| 2 | P227488 | Knob - Thermo |
|
- | |||||
| 3 | 3205760 | Knob - Top Valve, Griddle (5) |
|
- | |||||
| 4 | 08014034 | Main Top - White |
|
- | |||||
| 5 | 08011431 | Chrome Bowls (4) |
|
- | |||||
| 6 | 3009309 | Top - Grate (5) |
|
- | |||||
| 7 | 08013877 | Griddle W/ Drip Bowl |
|
- | |||||
| 8 | 08013949 | Cover - Griddle (white) |
|
- | |||||
| 9 | 08013991 | Aeratio. Pan |
|
- |
