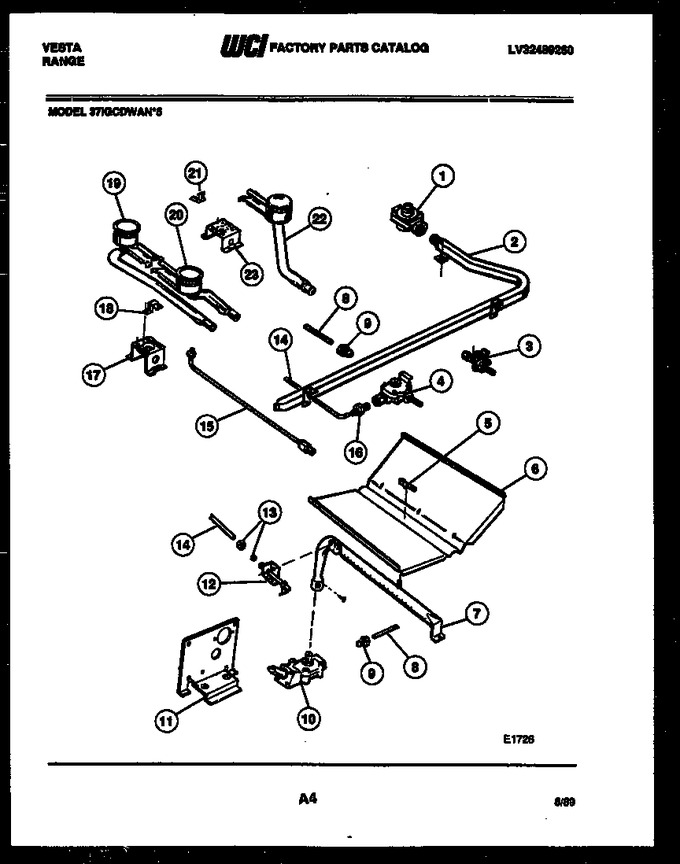

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08007974 | Pressure Regulator |
|
- | |||||
| 2 | P245185 | Manifold Pipe |
|
- | |||||
| 3 | 3205761 | Valve - Top (4) |
|
- | |||||
| 4 | 08013927 | Thermostat |
|
- | |||||
| 5 | 08007979 | Nut - Wing |
|
- | |||||
| 6 | 3131061 | Baffle - Burner |
|
- | |||||
| 7 | 08013855 | Burner-oven |
|
- | |||||
| 8 | 3131063 | Tube-oven Feed |
|
- | |||||
| 9 | 3131064 | Loxit Nut |
|
- | |||||
| 10 | 08013942 | Valve - Safety |
|
- | |||||
| 11 | 3131069 | Support - Oven Valve |
|
- | |||||
| 12 | 3131071 | Pilot - Oven |
|
- | |||||
| 13 | 3131072 | Nut & Sleeve |
|
- | |||||
| 14 | 3009490 | Tube Oven Pilot |
|
- | |||||
| 15 | P288035 | Pilot-top Burner & Griddle (left) |
|
- | |||||
| 16 | 3131074 | Loxit - Nut |
|
- | |||||
| 17 | 3016870 | Support-top Burner (2) |
|
- | |||||
| 18 | 3131078 | Strap - Pilot Shield |
|
- | |||||
| 19 | 3131079 | Burner-top Rear (2) |
|
- | |||||
| 20 | 3131080 | Burner - Top (front) (2) |
|
- | |||||
| 21 | 9126 | Clip-capillary |
|
$ 24.99 | |||||
| 22 | 3131882 | Burner - Griddle |
|
- | |||||
| 23 | 3018342 | Support-griddle Bmr |
|
- | |||||
| 15A | 3131075 | Pilot-top Burner (right) |
|
- |
