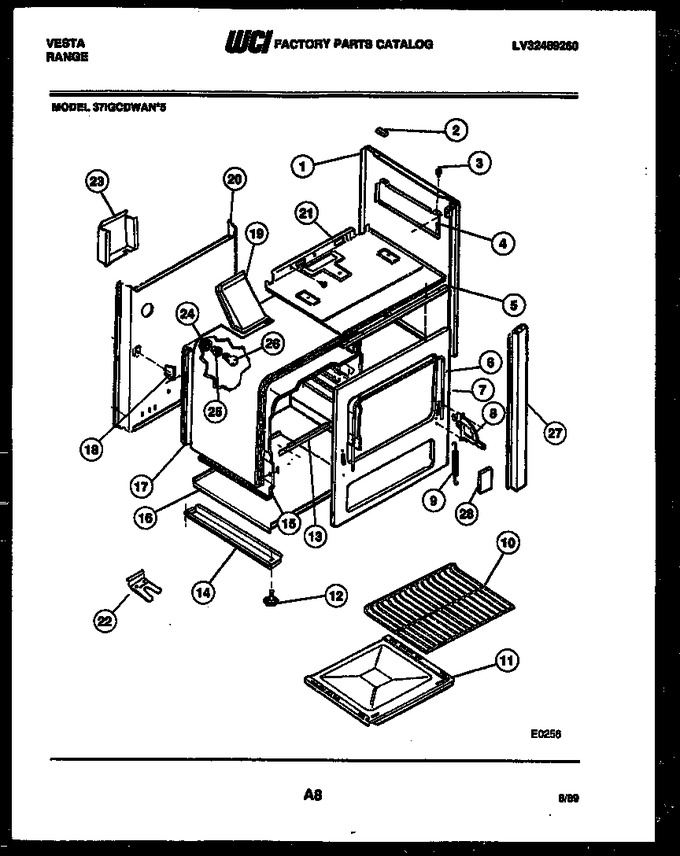

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051061		Panel - Sde (white)		Appelez-nous	-
2	3016129		Grommet-top Rear (2)		Appelez-nous	-
3	3051063		Grommet-top Front (2)		Appelez-nous	-
4	3131053		Shield - Heat Rh		Appelez-nous	-
5	3205765		Support-control Panel		Appelez-nous	-
6	08008022		Seal - Door		Appelez-nous	-
7	3205578		Frame - Front		Appelez-nous	-
8	3204670		Hinge - Door Rh		Appelez-nous	-
9	08008028		Spring (2)		Appelez-nous	-
10	3015714		Rack (2)		Appelez-nous	-
11	3018282		Panel - Bottom		Appelez-nous	-
12	3051080		Screw - Levelling (4)		Appelez-nous	-
13	3131038		Support-oven Bottom		Appelez-nous	-
14	08068047		Rail - Base (2)		Appelez-nous	-
15	3018709		Liner - Rt Side		Appelez-nous	-
15	3018713		Liner-top		Appelez-nous	-
16	3011645		Bottom-oven		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3051096		Support-rear (2)		Appelez-nous	-
19	3017173		Vent - Flue		Appelez-nous	-
20	3205762		Back - Main		Appelez-nous	-
21	3017993		Burner - Box Bottom		Appelez-nous	-
22	3934059		Anti - Tip Bracket		Appelez-nous	-
23	3018340		Cover-spark Module		Appelez-nous	-
24	3051511		Cup, Oven Light				$ 60.22
25	3009410		Receptacle-oven Light		Appelez-nous	-
26	3051082		Bulb-oven Light		Appelez-nous	-
27	08013993		Panel - Filter (white)		Appelez-nous	-
28	08014023		Support - Base Rail (2)		Appelez-nous	-
*30753	3018339		Reflector Plate		Appelez-nous	-
15A	3018710		Liner - Lt Side		Appelez-nous	-
15A	3018712		Liner-back		Appelez-nous	-
17A	3017172		Insulation - Back		Appelez-nous	-
22A	3131791		Clip - B/s Coker (non-illustrated)				$ 19.01
4A	3131054		Shield - Heat Lh		Appelez-nous	-
8A	3204672		Hinge - Door Lh		Appelez-nous	-
