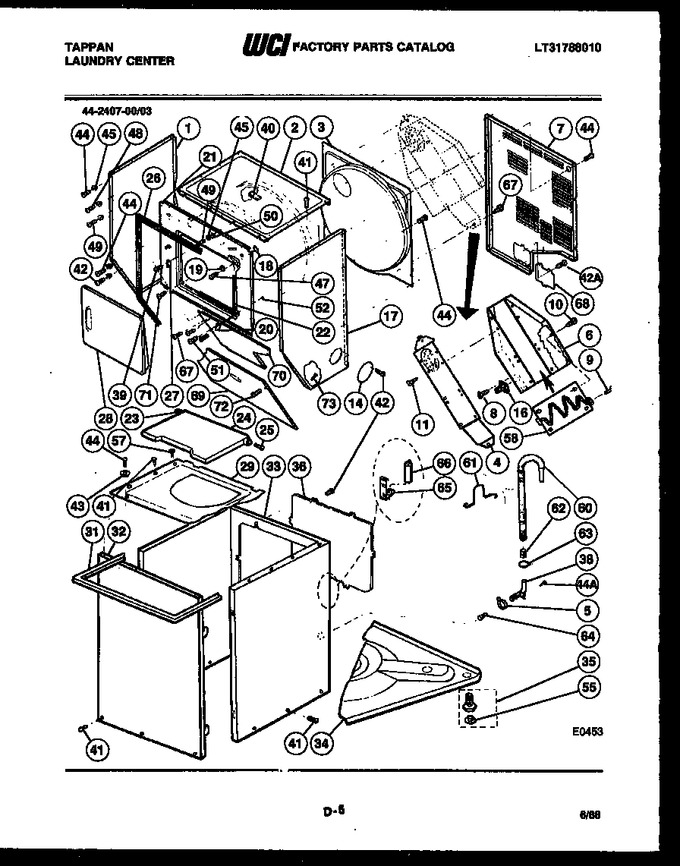

02 - Cabinet Parts And Heater


03 - Console, Control And Drum


04 - Dryer Motor, Blower And Belt


05 - Tubs, Water Valve And Lid Switch


06 - Washer Drive System And Pump


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3161014		Panel-lh-dryer-almd		Appelez-nous	-
1	3161013		Panel-lh-dryer-wht		Appelez-nous	-
2	3161016		Pnl-top-dryer-almd		Appelez-nous	-
2	3161015		Pnl-top-dryer-white		Appelez-nous	-
3	3017111		Panel-rear		Appelez-nous	-
4	3161018		Duct-front		Appelez-nous	-
5	3161183		Clamp-hose/coupler		Appelez-nous	-
6	3161019		Duct-rear		Appelez-nous	-
7	3016426		Panel-vent		Appelez-nous	-
8	3161233		Screw		Appelez-nous	-
9	3161234		Screw (2)		Appelez-nous	-
10	3161233		Screw (4)		Appelez-nous	-
11	3161233		Screw (11)		Appelez-nous	-
14	3161022		Cover-exhaust-almd		Appelez-nous	-
14	3161021		Cover-exhaust-white		Appelez-nous	-
16	3161023		Thermo-safety		Appelez-nous	-
17	3161025		Pnl-rh-dryer-almd		Appelez-nous	-
17	3161024		Pnl-rh-dryer-white		Appelez-nous	-
18	3161235		Speedclip		Appelez-nous	-
19	3161026		Hinge-door-top		Appelez-nous	-
20	3161027		Hinge-door-lower		Appelez-nous	-
21	3016436		Pnl - Front Dryer (white)		Appelez-nous	-
21	3016438		Pnl-front-dryer-almd		Appelez-nous	-
22	3161030		Door Seal		Appelez-nous	-
23	3161236		Screw		Appelez-nous	-
24	3161031		Lid-washer-white		Appelez-nous	-
24	3161032		Lid-washer-almond		Appelez-nous	-
25	3161236		Screw		Appelez-nous	-
26	3161475		Trim-dryer		Appelez-nous	-
27	3161034		Spring Latch		Appelez-nous	-
28	3161036		Door-dryer-almond		Appelez-nous	-
28	3161035		Door-dryer-white		Appelez-nous	-
29	3161037		Pnl-top-wshr-white		Appelez-nous	-
29	3161038		Pnl-top-wshr-almd		Appelez-nous	-
31	3161477		Trim-washer		Appelez-nous	-
32	3161041		Panel-frnt-wshr-almd		Appelez-nous	-
32	3161040		Panel-frnt-wshr-wht		Appelez-nous	-
33	3161043		Cabinet-wshr-almd		Appelez-nous	-
33	3161042		Cabinet-wshr-white		Appelez-nous	-
34	3161044		Base-washer		Appelez-nous	-
35	3161045		Leg-leveling Assy (4)		Appelez-nous	-
36	3161046		Pnl-access-rr-wshr		Appelez-nous	-
38	3161452		Coupler - Drain Hose				$ 34.39
39	3161237		Rivet		Appelez-nous	-
40	3161048		Pad-drum		Appelez-nous	-
41	3161238		Screw (19)		Appelez-nous	-
42	3161239		Screw (18)		Appelez-nous	-
43	3161241		Retainer-trim (10)		Appelez-nous	-
44	3161242		Screw (24)		Appelez-nous	-
45	3161241		Retainer-trim		Appelez-nous	-
47	3161243		Screw (2)		Appelez-nous	-
48	3161238		Screw (2)		Appelez-nous	-
49	3161244		Screw (6)		Appelez-nous	-
50	3161245		Spacer (optional) (2)		Appelez-nous	-
51	3161246		Screw-hng/front Pnl		Appelez-nous	-
52	3161247		Nut-acorn		Appelez-nous	-
55	3161049		Pad-leveling Leg (4)		Appelez-nous	-
57	3161185		Screw (2)		Appelez-nous	-
58	3161050		Heater Assembly		Appelez-nous	-
60	3161454		Drain Hose Assy		Appelez-nous	-
61	3161248		Retainer-drain Hose		Appelez-nous	-
62	3161249		Bushing-drain Hose		Appelez-nous	-
63	3161186		Clamp-hose		Appelez-nous	-
64	3161251		Check Valve		Appelez-nous	-
65	3161252		Bracket-capacitor		Appelez-nous	-
66	3161052		Capacitor		Appelez-nous	-
67	3161233		Screw		Appelez-nous	-
68	3161053		Cover-terminal		Appelez-nous	-
69	3161054		Panel-access-white		Appelez-nous	-
69	3161055		Panel-access-almd		Appelez-nous	-
70	3016443		Cover - Lint Housing		Appelez-nous	-
71	3161187		Screw		Appelez-nous	-
72	3161253		Screw (2)		Appelez-nous	-
73	3161240		Screw (2)		Appelez-nous	-
*14203	3161057		Insul-rr & Vent Pnl		Appelez-nous	-
*14203	3016444		Insul-alum Back		Appelez-nous	-
*14204	3161012		Paint-6oz.-almond		Appelez-nous	-
*14204	3161011		Paint-6oz.-white		Appelez-nous	-
42A	3017891		Screw (3)		Appelez-nous	-
44A	3161453		Screw		Appelez-nous	-
51A	3161243		Screw-hinge/lint Hsg		Appelez-nous	-
63A	3161250		Cable Tie-hose		Appelez-nous	-
