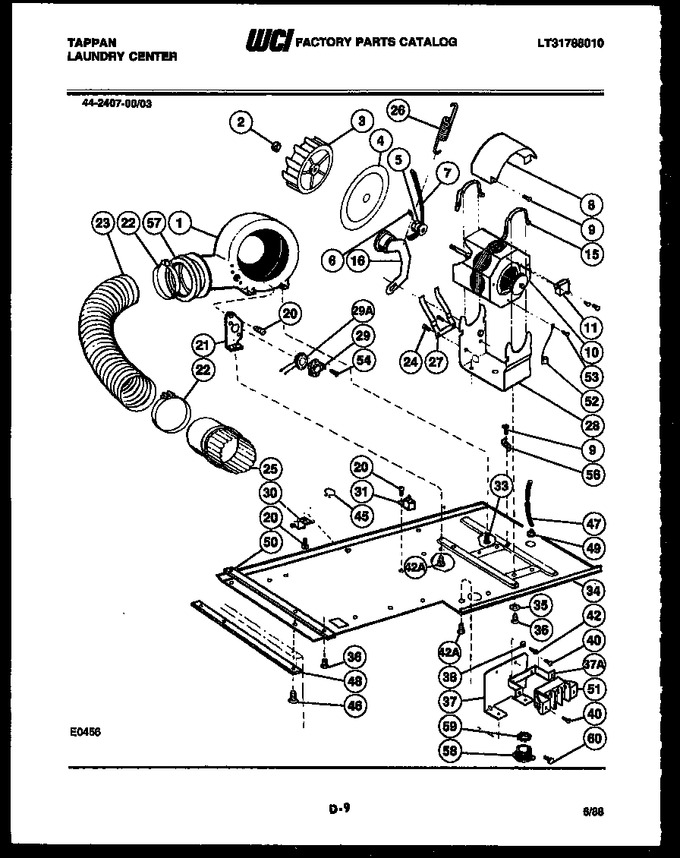

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3161167 | Housing-blower |
|
- | |||||
| 2 | 3161263 | Spring Clip |
|
- | |||||
| 3 | 3161096 | Wheel-blower |
|
- | |||||
| 4 | 3161097 | Plate-blower Housing |
|
- | |||||
| 5 | 3161098 | Pulley-motor |
|
- | |||||
| 6 | 3161264 | Set Screw |
|
- | |||||
| 7 | 3161099 | Belt-drum |
|
- | |||||
| 8 | 3016462 | Shield-motor |
|
- | |||||
| 9 | 3161279 | Screw/motor |
|
- | |||||
| 10 | 3161101 | Dryer Motor & Switch Assembly |
|
- | |||||
| 11 | 3161102 | Switch-motor (ge) |
|
- | |||||
| 15 | 3161190 | Clip (2) |
|
- | |||||
| 16 | 3161103 | Idler Arm & Wheel Assembly |
|
- | |||||
| 20 | 3161242 | Screw-buzzer/base |
|
- | |||||
| 21 | 3016464 | Bracket |
|
- | |||||
| 22 | 3161267 | Clamp (2) |
|
- | |||||
| 23 | 3161104 | Exhaust Tube |
|
- | |||||
| 24 | 3161268 | Screw |
|
- | |||||
| 25 | 3016465 | Extension |
|
- | |||||
| 26 | 3161106 | Spring-idler Arm |
|
- | |||||
| 27 | 3161269 | Retainer |
|
- | |||||
| 28 | 3016466 | Cradle Motor |
|
- | |||||
| 29 | 3161108 | Thermostat-control |
|
- | |||||
| 30 | 3161270 | Clip (2) |
|
- | |||||
| 31 | 3161271 | Buzzer |
|
- | |||||
| 33 | 3161254 | Screw (4) |
|
- | |||||
| 34 | 3161110 | Dryer Base |
|
- | |||||
| 35 | 3161192 | Washer (3) |
|
- | |||||
| 36 | 3161272 | Screw (6) |
|
- | |||||
| 37 | 3161273 | Bracket |
|
- | |||||
| 38 | 3161194 | Cup Washer |
|
- | |||||
| 40 | 3161242 | Screw-terminal Block/bracket (2) |
|
- | |||||
| 42 | 3161275 | Screw |
|
- | |||||
| 45 | 3161276 | Retainer (2) |
|
- | |||||
| 46 | 3161272 | Screw (4) |
|
- | |||||
| 47 | 3161112 | Pressure Tube |
|
- | |||||
| 48 | 3016468 | Brace |
|
- | |||||
| 49 | 3161114 | Connecter |
|
- | |||||
| 50 | 3016469 | Plate |
|
- | |||||
| 51 | 3016470 | Terminal Block |
|
- | |||||
| 52 | 3161278 | Wire-ground |
|
- | |||||
| 53 | 3161279 | Screw |
|
- | |||||
| 54 | 3161215 | Screw (2) |
|
- | |||||
| 56 | 3161198 | Terminal |
|
- | |||||
| 57 | 3016471 | Gasket |
|
- | |||||
| 58 | 3016472 | Strain Relief |
|
- | |||||
| 59 | 3016473 | Nut-strain Relief |
|
- | |||||
| 60 | 3016474 | Screw-strain Relief |
|
- | |||||
| *14211 | 3161117 | Nylube Lubricant |
|
- | |||||
| *14211 | 3017939 | Service Cord |
|
- | |||||
| 20A | 3161268 | Screw-clip/base |
|
- | |||||
| 20B | 3017891 | Screw-bracket/housing |
|
- | |||||
| 29A | 3161109 | Heater-thermostat |
|
- | |||||
| 35A | 3161193 | Lockwasher |
|
- | |||||
| 40A | 3161239 | Screw Terminal Block Bracket To Bracket (2) |
|
- | |||||
| 42A | 3161268 | Screw (4) |
|
- | |||||
| 9A | 3161240 | Screw-ground-timer/base |
|
- |
