Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3161118 Housing-lint Filter Appelez-nous -
2 3161119 Filter-lint Appelez-nous -
3 3161120 Tub Cover Appelez-nous -
4 3161121 Seal-tub Cover Appelez-nous -
5 3161199 Clip (8) Appelez-nous -
6 3161280 Screw (5) Appelez-nous -
7 3161281 Clamp Appelez-nous -
8 3161122 Cap-agitator (incl 9) Appelez-nous -
9 3161200 Washer Appelez-nous -
10 3161201 Screw (5) Appelez-nous -
11 3161123 Agitator Appelez-nous -
12 3161282 Clamp Appelez-nous -
13 3161124 Tub-spin Appelez-nous -
14 3161125 Lockplate Appelez-nous -
15 3161126 Trunnion Appelez-nous -
16 3161127 Tub-splash Appelez-nous -
17 3161464 Housing Assembly-bearing Appelez-nous -
18 3161283 Speednut Appelez-nous -
20 3161129 Spring-horizontal-long Appelez-nous -
21 3161130 Snubber Ring Assembly Appelez-nous -
22 3161284 Bolt-shipping Appelez-nous -
23 3161202 Block-shipping Appelez-nous -
24 3161203 Nut-expansion Appelez-nous -
25 3161131 Spring-vertical-short Appelez-nous -
26 3161132 Leg & Dome Appelez-nous -
27 3161204 Nut (6) Appelez-nous -
28 3161205 Screw (6) Appelez-nous -
29 3161133 Spring-vertical-long Appelez-nous -
30 3161134 Plate (3) Appelez-nous -
31 3161135 Hose-pump/trap Appelez-nous -
32 3161285 Shim Appelez-nous -
33 3161136 Button Trap Appelez-nous -
34 3161286 Grommet Appelez-nous -
36 3161137 Tube-pressure Appelez-nous -
37 3161288 Clip (2) Appelez-nous -
38 3016475 Harness-lower-washer-motor Appelez-nous -
40 3161139 Water Inlet Assembly Appelez-nous -
41 3161140 Valve-water Appelez-nous -
42 3161141 Lid Lock Appelez-nous -
44 3161142 Hose-valve-inlet Appelez-nous -
45 3161289 Washer-thrust Appelez-nous -
46 3161143 Bracket Appelez-nous -
47 3161242 Screw (2) Appelez-nous -
48 3161290 Screw (2) Appelez-nous -
49 3161291 Screw (3) Appelez-nous -
50 3161487 Screw (2) Appelez-nous -
52 3161206 Clamp Appelez-nous -
53 3161207 Clamp Appelez-nous -
54 3161208 Clamp Appelez-nous -
55 3161293 Clamp Appelez-nous -
56 3161274 Screw Appelez-nous -
57 3161287 Clip-harness Appelez-nous -
58 3161209 Spring-horizontal-short Appelez-nous -
59 3161238 Screw (2) Appelez-nous -
61 3161144 Hose-inlet-hot Appelez-nous -
63 3161294 Clamp Appelez-nous -
64 3161210 Screw Appelez-nous -
65 3161295 Shield-motor (plastic Motor Shield And Tape - Fabricate Appelez-nous -
66 3161296 Washer (4) Appelez-nous -
67 3161297 Gasket Appelez-nous -
68 3161146 Check Valve Appelez-nous -
*14215 3161298 Clip-pressure-tube-short Appelez-nous -
*14215 3161147 Adhesive Appelez-nous -
*14215 3004924 Fabric Softner Disspenser Appelez-nous -
*14215 3161299 Clip-pressure Tube (long) Appelez-nous -
*14215 3161149 Butyl Rubber Appelez-nous -
*14215 3161148 Primer Adhesive Appelez-nous -
61A 3161145 Hose-inlet-cold Appelez-nous -

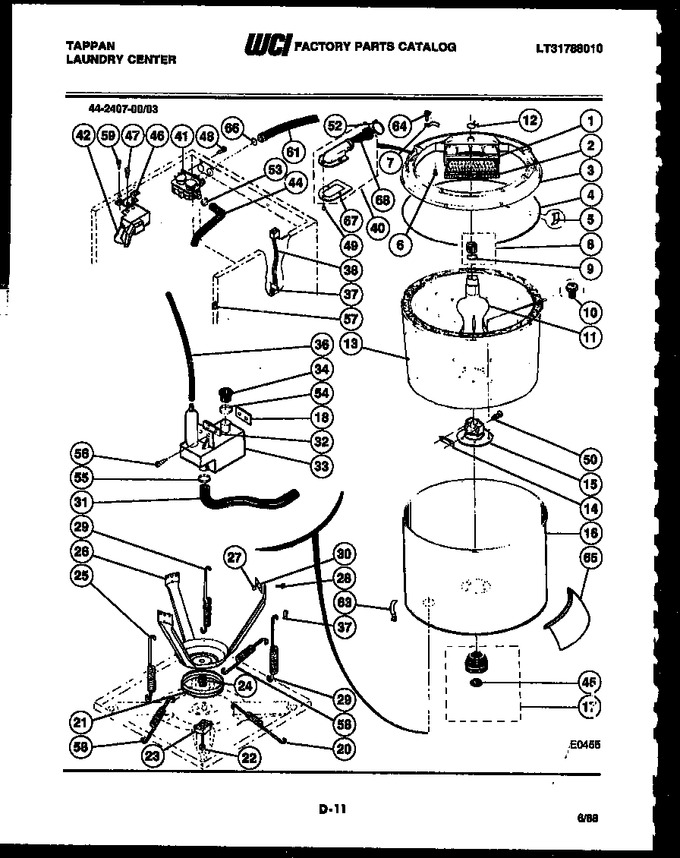

    View Diagram in Separate Window     Print Icon   Print Part List
