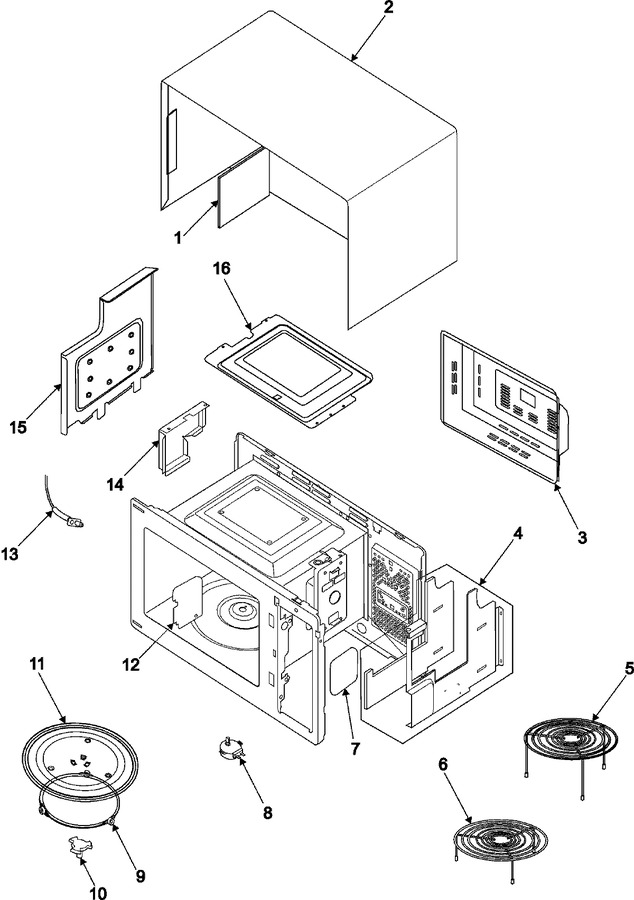

01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Convection Motor
04 - Internal Controls/latch/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE63-90035H | Cushion-rubber |
|
- | |||||
| 2 | Y00000000 | See Note Panel-outer Currently Unavailable |
|
- | |||||
| 3 | DE71-60448D | Cover-back;mc1015wb/xaa,alcoat |
|
- | |||||
| 4 | DE92-90554B | Assy-cover Adia(l) |
|
- | |||||
| 5 | DE97-00136E | Assy-wire Rack |
|
$ 76.95 | |||||
| 6 | DE97-00136B | Assy-wire Rack |
|
$ 62.83 | |||||
| 7 | 4713-001012 | Lamp-incandescent |
|
$ 40.81 | |||||
| 8 | DE31-10104A | Motor-synchronous |
|
- | |||||
| 9 | DE92-90189U | Assy-guide Roller |
|
$ 26.31 | |||||
| 10 | DE67-60081A | Coupler |
|
$ 17.58 | |||||
| 11 | DE74-20015G | Tray, Cooking |
|
$ 86.37 | |||||
| 12 | DE71-00015A | Cover-ceiling |
|
$ 5.57 | |||||
| 13 | DE32-10013B | Sensor-thermistor |
|
- | |||||
| 14 | DE72-60035R | Guide-air |
|
- | |||||
| 15 | DE71-60447A | Cover-adiabatic |
|
- | |||||
| 16 | DE61-50565A | Bracket-upper |
|
- |
