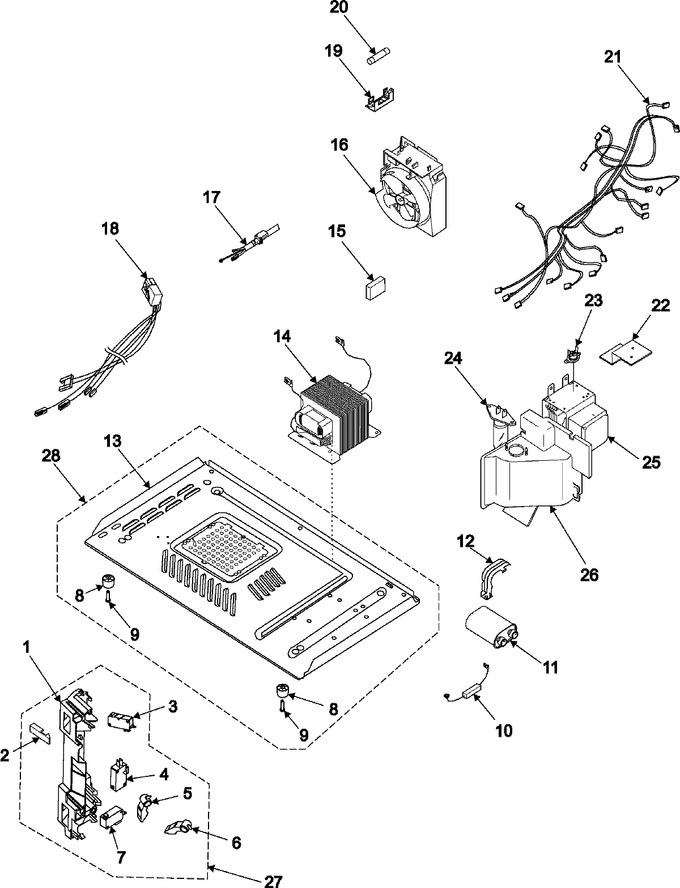

01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Convection Motor
04 - Internal Controls/latch/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE72-00137B | Latch-body |
|
- | |||||
| 2 | DE66-00117A | Latch-stopper |
|
- | |||||
| 3 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 4 | 3405-001032 | Switch-micro |
|
$ 22.17 | |||||
| 5 | DE66-00093B | Lever-switch(a) |
|
- | |||||
| 6 | DE66-00094B | Lever-switch(b) |
|
- | |||||
| 7 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 8 | DE61-40065A | Foot |
|
$ 17.58 | |||||
| 9 | DE60-60025A | Pin, Foot |
|
$ 0.85 | |||||
| 10 | DE91-70063D | Assy-h.v.d. (Replaces: DE91-70063A) |
|
Immediately | $ 15.89 | ||||
| 11 | 8206562 | Capacitor (Replaces: 2501-001016) |
|
Immediately | $ 108.83 | ||||
| 12 | DE61-50106A | Bracket, Capacitor |
|
- | |||||
| 13 | DE80-10001R | Base-plate |
|
- | |||||
| 14 | DE26-00061B | Trans-h.v |
|
$ 181.92 | |||||
| 15 | DE63-00023A | Cushion-hvt |
|
- | |||||
| 16 | DE31-00001G | Assy-motor Fan |
|
- | |||||
| 17 | DE96-00222A | Assy-power Cord |
|
- | |||||
| 18 | DE39-00220A | Wire Harness-b |
|
- | |||||
| 19 | 3602-001025 | Holder, Fuse |
|
- | |||||
| 20 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) |
|
Immediately | $ 10.31 | ||||
| 21 | DE96-00221A | Assy-wire Harness-a |
|
- | |||||
| 22 | DE61-50490A | Bracket-tco |
|
$ 1.66 | |||||
| 23 | DE47-20009A | Thermostat |
|
$ 17.58 | |||||
| 24 | 4713-001012 | Lamp-incandescent |
|
$ 40.81 | |||||
| 25 | WPW10126794 | Assy-magnetron:om75p(31)ess (Replaces: YOM75P31ESS) |
|
$ 282.22 | |||||
| 26 | DE71-60016D | Cover-air |
|
- | |||||
| 27 | DE96-00120K | Assy Body Latch |
|
- | |||||
| 28 | DE96-00042X | Assy Base Plate-sub |
|
- |
