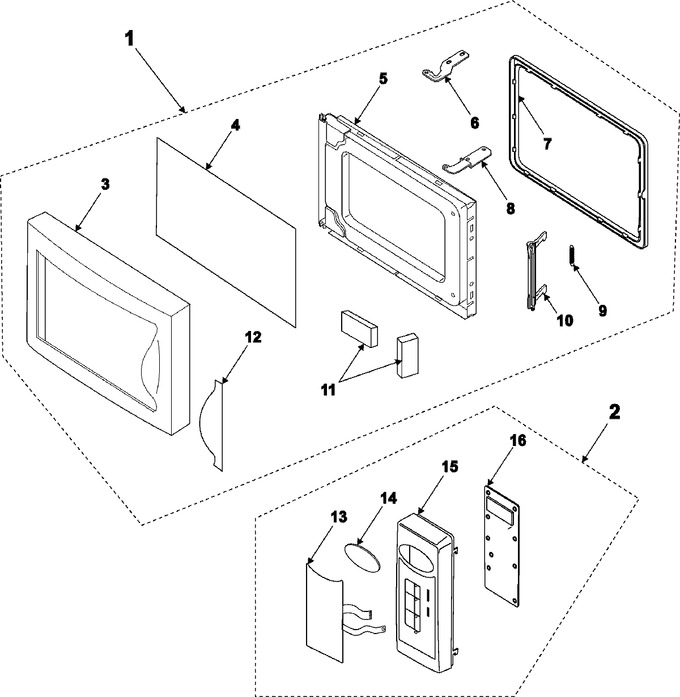

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Convection Motor
04 - Internal Controls/latch/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE94-00644F | Assy Door |
|
- | |||||
| 2 | DE94-00788C | Assy Control-panel;120v60hz,mc |
|
- | |||||
| 3 | DE64-40319A | Door-a |
|
- | |||||
| 4 | DE67-20184K | Screen-door(b) |
|
- | |||||
| 5 | DE94-00075H | Assy Door-e(sealant) |
|
- | |||||
| 6 | DE61-80002A | Hinge-upper |
|
- | |||||
| 7 | DE64-40012C | Door-c |
|
- | |||||
| 8 | DE61-80003A | Hinge-lower |
|
- | |||||
| 9 | DE61-00199A | Spring-key |
|
- | |||||
| 10 | DE64-00847A | Key-door |
|
- | |||||
| 11 | DE63-00024B | Cushion-screen |
|
- | |||||
| 12 | DE64-90160A | Decoration-door |
|
$ 8.17 | |||||
| 13 | DE34-00127A | Switch Membrane |
|
- | |||||
| 14 | DE67-40173B | Window-display |
|
- | |||||
| 15 | DE64-00707C | Control-panel |
|
- | |||||
| 16 | YRAMC569405 | Assy Pcb Parts |
|
- |
