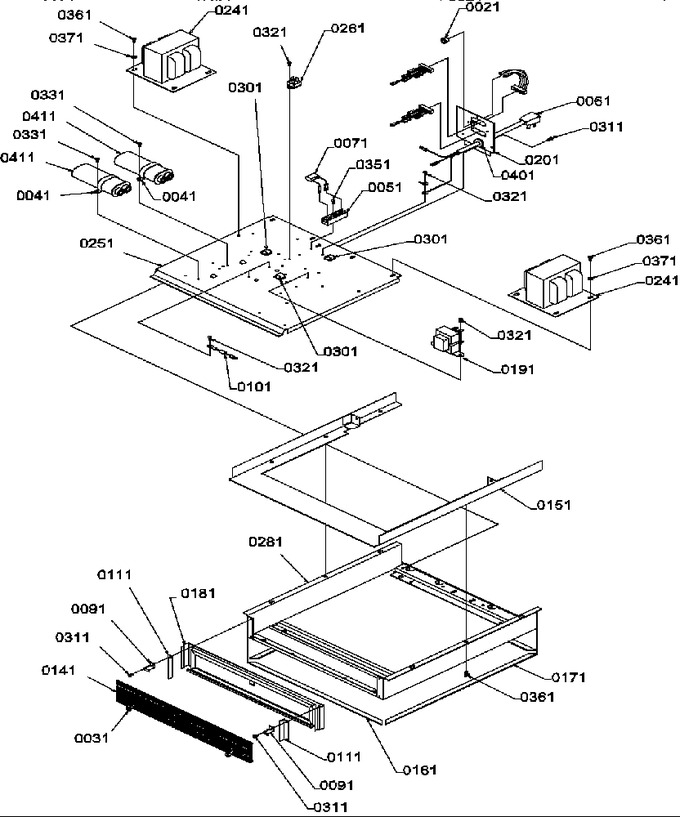

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	A3293501		Bushing		Appelez-nous	-
31	M0321212		Tie-elect.		Appelez-nous	-
41	A4055405		Strap, Capacitor		Appelez-nous	-
51	B5677203		Terminal Block		Appelez-nous	-
61	10471501		Power Cord Xx		Appelez-nous	-
71	10172902		Snubber Assembly		Appelez-nous	-
91	B8364201		Spring		Appelez-nous	-
101	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
111	B8392501		Guide, Filter		Appelez-nous	-
141	C8708502		Grille Air Inlet		Appelez-nous	-
151	C8775302		Oven Mtg Plate		Appelez-nous	-
161	10732502		Gasket, Base Pan		Appelez-nous	-
171	10732503		Gasket,basepan		Appelez-nous	-
181	C8890002		Ass`y, Air Inlet		Appelez-nous	-
191	C8901502		Transformer, Auto		Appelez-nous	-
201	10429702		Strain Releif		Appelez-nous	-
241	D7374906		Xfmr-hv		Appelez-nous	-
251	D7573604		Chassis		Appelez-nous	-
261	D7681501		Triac				$ 44.05
281	D7732802		Basepan Weld		Appelez-nous	-
301	M0104102		Clip, Cord				$ 8.10
311	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
321	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
331	M0216517		Screw		Appelez-nous	-
351	M0234117		Screw		Appelez-nous	-
361	M0253543		Screw K		Appelez-nous	-
371	M0272805		Lock Washer		Appelez-nous	-
401	M0370010		Relief, Strain		Appelez-nous	-
411	D8547912		Capacitor				$ 113.19

    View Diagram in Separate Window       Print Part List
