SELECT A DIAGRAM

01 - Basepan


02 - Cabinet/blower


03 - Cavity


04 - Door/control Panel

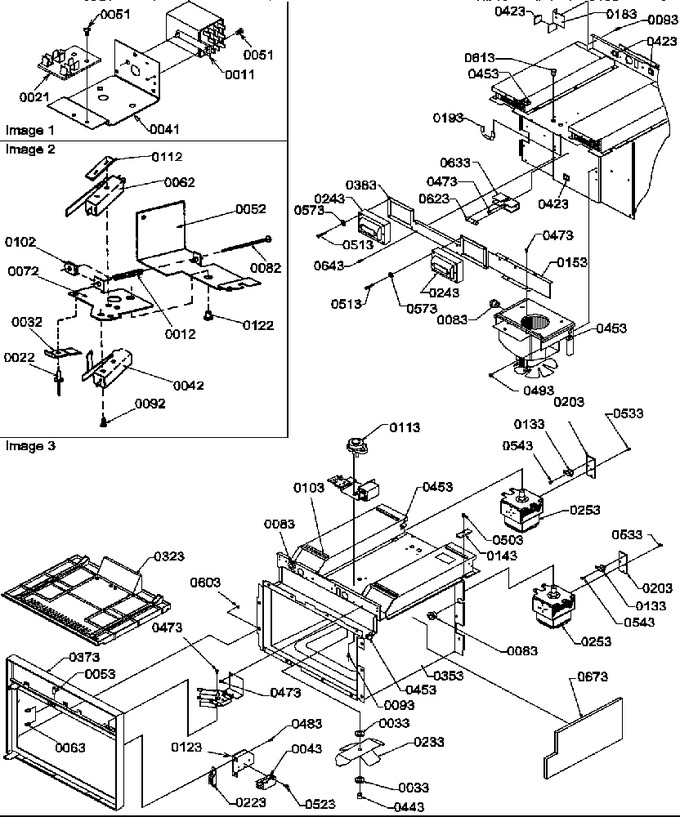

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	C8873928		Relay, Control		Appelez-nous	-
12	A3277701		Spring A		Appelez-nous	-
21	C8988704		Terminal Board		Appelez-nous	-
22	A4539601		Pop Rivet		Appelez-nous	-
32	B8321802		Clip		Appelez-nous	-
33	A3109101		Washer		Appelez-nous	-
41	D7695901		Plate Mtg		Appelez-nous	-
42	B8324002		Intlk Sw-weld		Appelez-nous	-
43	A3163415		Switch, Preform		Appelez-nous	-
51	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
52	B8332501		Bracket Interlock		Appelez-nous	-
53	A3181801		Guide-door Stop		Appelez-nous	-
62	C3670014		Switch-interlock (limit)		Appelez-nous	-
63	A3182101		Bushing		Appelez-nous	-
72	C8875301		Bracket		Appelez-nous	-
82	M0211025		Screw		Appelez-nous	-
83	A3293503		Snap Bushing		Appelez-nous	-
92	M0213123		Screw		Appelez-nous	-
93	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
102	M0288010		Speed Nut		Appelez-nous	-
103	A4591129		Gasket K		Appelez-nous	-
112	M0289505		Speednut		Appelez-nous	-
113	B5602811		Motor		Appelez-nous	-
122	M1205109		Rivet A-k		Appelez-nous	-
123	B5675403		Bracket-latch		Appelez-nous	-
133	B5684109		Protector, Thermal		Appelez-nous	-
143	B5774402		Brkt-mag Tube		Appelez-nous	-
153	B5778001		End Plate		Appelez-nous	-
183	B8349201		Bracket, Harness		Appelez-nous	-
193	B8353203		Thermal Fuse W/terminals		Appelez-nous	-
203	B8373501		Plate Tc Mtg		Appelez-nous	-
223	C3680202		Strike-latch		Appelez-nous	-
233	C8708601		Stirrer Blade (antenna)		Appelez-nous	-
243	C8798803		Transformer		Appelez-nous	-
253	C8798603		Magnetron		Appelez-nous	-
283	10984301		Plate, Lower Hinge		Appelez-nous	-
323	D7457103		Shield,splatter		Appelez-nous	-
353	10459502		Weld, Oven Cavity		Appelez-nous	-
373	D7666402		Bezel-outercase		Appelez-nous	-
383	D7705301		Brkt Transformer		Appelez-nous	-
423	M0104102		Clip, Cord				$ 8.10
443	M0114002		Clip		Appelez-nous	-
453	M0118801		Clip		Appelez-nous	-
473	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
483	M0231717		Screw, Tf		Appelez-nous	-
493	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
503	R9800670		Kit, Screw   (Replaces: M0211030)				$ 8.44
513	M0218136		Screw		Appelez-nous	-
523	M0227520		Screw		Appelez-nous	-
533	M0229916		Screw T.c		Appelez-nous	-
543	M0232012		Screw		Appelez-nous	-
573	M0272803		Lock Washer		Appelez-nous	-
603	M0283801		Nut, Self Thread		Appelez-nous	-
613	M0325401		Bushing,terminal		Appelez-nous	-
623	14QBP25BAN		Fuse, 25 Amp   (Replaces: M0805201)		Appelez-nous	-
633	10091101		Fuse Holder		Appelez-nous	-
643	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.20
673	10750101		Insulation, Oven		Appelez-nous	-
NI	10523701		Harness Oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
