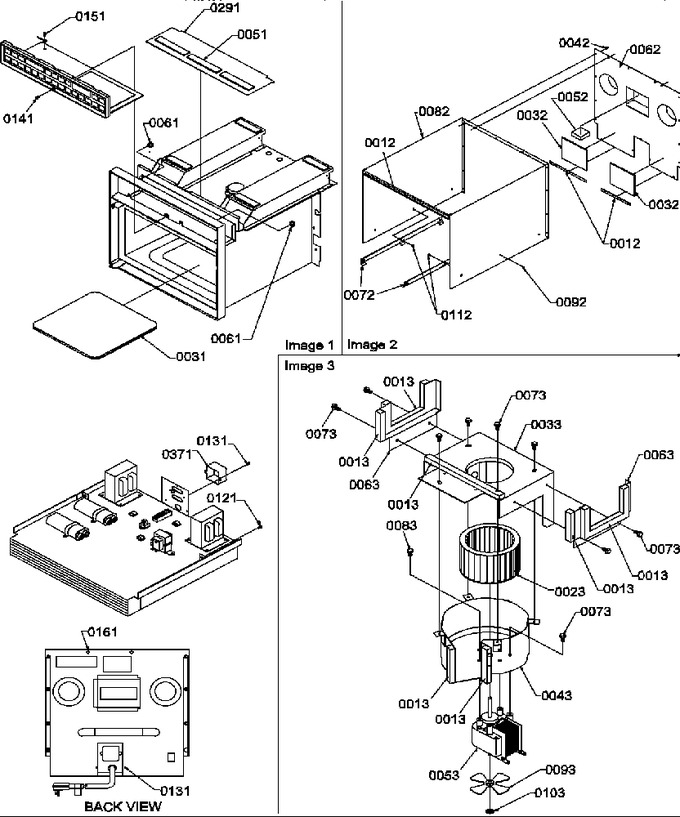

SELECT A DIAGRAM

01 - Basepan


02 - Cabinet/blower


03 - Cavity


04 - Door/control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	A3030301		Gasket (inch)		Appelez-nous	-
13	A3030341		Gasket		Appelez-nous	-
23	C3670808		Wheel, Blower		Appelez-nous	-
31	B5795002		Tray-oven		Appelez-nous	-
32	A3205602		Insulation		Appelez-nous	-
33	C8707804		Bracket		Appelez-nous	-
42	10098801		Rivet		Appelez-nous	-
43	C8710701		Wldmt-blower Scroll		Appelez-nous	-
51	A4591129		Gasket K		Appelez-nous	-
52	B8343701		Gasket		Appelez-nous	-
53	R0156503		Kit, Motor		Appelez-nous	-
61	M0120002		Nut K		Appelez-nous	-
62	C8801111		Weld, Pnt Access Pnl		Appelez-nous	-
63	D7832201		End Plate, Air Duct.		Appelez-nous	-
72	C8812901		Guide-strip		Appelez-nous	-
73	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
82	D7379605		Wrapper-oc		Appelez-nous	-
83	M0251028		Screw, T.c.		Appelez-nous	-
92	M0207943		Screw		Appelez-nous	-
93	B5706702		Fan Blade-blower		Appelez-nous	-
103	M0118901		Clip		Appelez-nous	-
112	WP3400029		Nut   (Replaces: M0282010)			Immediately	$ 6.98
121	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.26
131	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
141	M0230820		Screw		Appelez-nous	-
151	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
161	M0216517		Screw		Appelez-nous	-
291	10429301		Sheild, Drip		Appelez-nous	-
371	B8334701		Can, Capacitor		Appelez-nous	-
