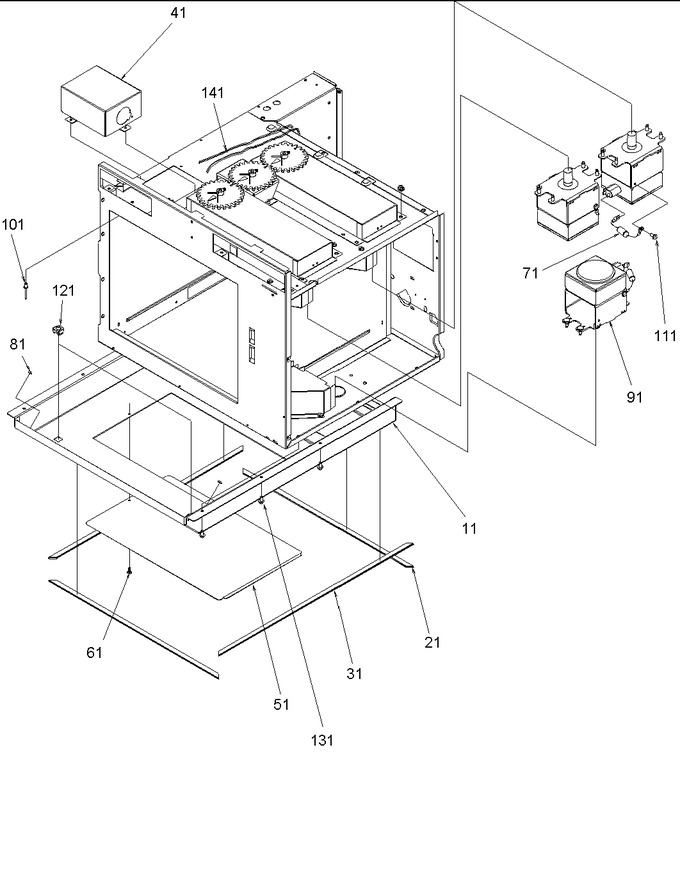

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | R0156923 | Assy, Base Pan |
|
- | |||||
| 21 | 10732506 | Gasket, Basepan (cut) |
|
- | |||||
| 31 | 10732507 | Gasket, Basepan |
|
- | |||||
| 41 | 10782501 | Brkt, Lamp |
|
- | |||||
| 51 | 10782402 | Bottom Access Panel |
|
- | |||||
| 61 | M0213815 | Screw |
|
- | |||||
| 71 | WP13091701 | Rectifier (Replaces: B8383102) |
|
$ 31.71 | |||||
| 81 | M0294701 | Nut, Self Clinch |
|
- | |||||
| 91 | D7831006 | Magnetron-t |
|
- | |||||
| 101 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 111 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 121 | M0286602 | Speed Grip |
|
- | |||||
| 131 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 141 | 10979301 | Harness, Oven Lamp |
|
- |
