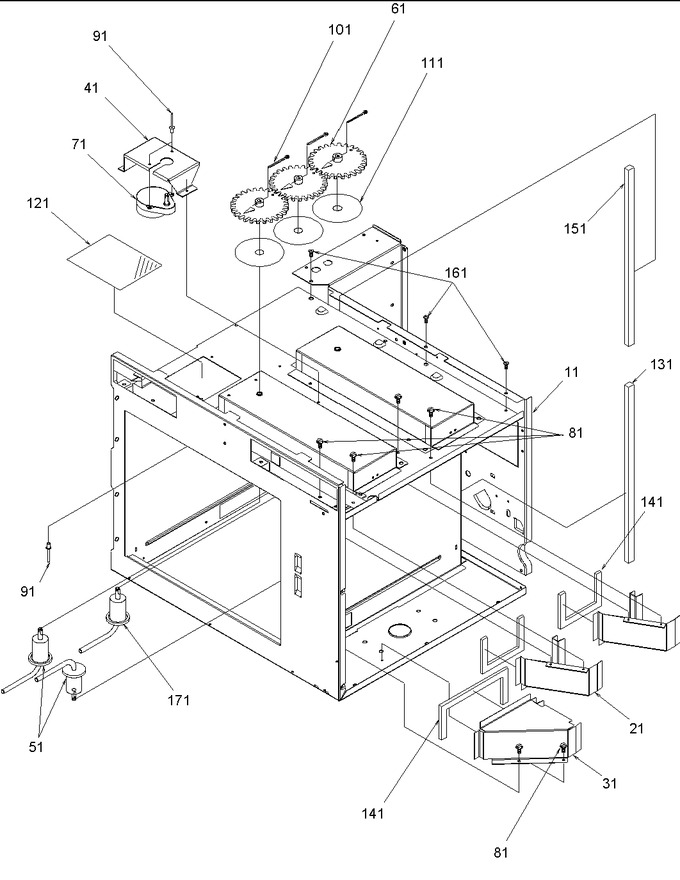

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10768304		Panel-partition		Appelez-nous	-
21	10781702		Duct-top Exhaust		Appelez-nous	-
31	10781801		Duct, Bottom Exh		Appelez-nous	-
41	10782202		Brkt-motor Mtg		Appelez-nous	-
51	10787601		Assy, Antenna (plain Tip)		Appelez-nous	-
61	R0156917		Kit, Gear		Appelez-nous	-
71	R0150102		Motor-antenna		Appelez-nous	-
81	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
91	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
101	M1200005		Pin, Cotter		Appelez-nous	-
111	10903002		Washer, Spur Gear				$ 5.44
121	B8367702		Window, Oven Light		Appelez-nous	-
131	A3030311		Gasket-per Inch		Appelez-nous	-
141	A3030330		Gasket,per Ft		Appelez-nous	-
151	10966601		Gasket, Neoprene		Appelez-nous	-
161	WP488234		Screw   (Replaces: M0234422)				$ 6.07
171	10787601		Assy, Antenna (plain Tip)		Appelez-nous	-
