01 - Chassis Assembly Parts


02 - Chassis Assembly Parts


03 - Chassis Assembly Parts


04 - Chassis Assembly Parts


05 - Chassis Assembly Parts


06 - Chassis Assembly Parts


07 - Chassis Assy Parts & Blower-triac Assy

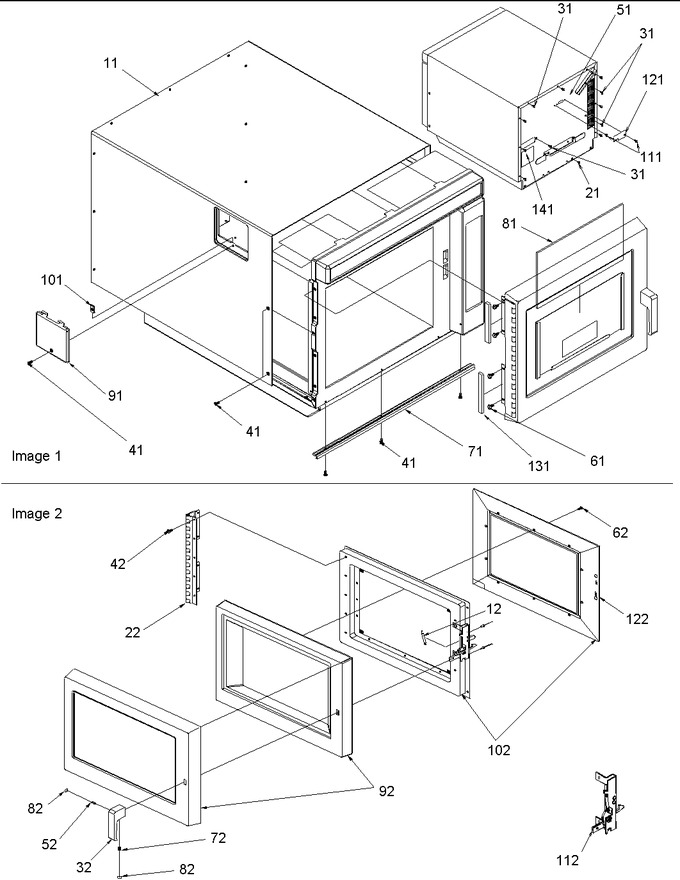

08 - Outercase Assembly & Door Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10908901Q		Wrapper-oc (ss)		Appelez-nous	-
12	C8893502		Spring, Door Latch		Appelez-nous	-
21	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
22	12003804		Hinge, Door				$ 41.15
31	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
32	12490901		Handle, Door		Appelez-nous	-
41	M0249619		Screw, T F		Appelez-nous	-
42	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
51	10827218		Assy, Access Pnl		Appelez-nous	-
52	5051032202		Set Screw No.10 X .25		Appelez-nous	-
61	WP489464		Screw K   (Replaces: M0211317)			Immediately	$ 7.05
62	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
71	10909001		Trim-oc (brushed)		Appelez-nous	-
72	M0208342		Screw, Set		Appelez-nous	-
81	10432501		Menu Panel		Appelez-nous	-
82	12285602		Cover-hole		Appelez-nous	-
91	10785602		Cover Light (ss)		Appelez-nous	-
92	R0156920		Outer Door/lens Retainer Assy		Appelez-nous	-
101	M0288213		Clip		Appelez-nous	-
102	R0156921		Inner Door & Glass Assy		Appelez-nous	-
111	M0221702		Screw, Shldr		Appelez-nous	-
112	12002757		Latch Kit   (Replaces: R0000282)				$ 116.60
121	10954302		Junction Cov- E Ct		Appelez-nous	-
122	D7784901		Inner Door/glass Assy		Appelez-nous	-
131	A3263904		Gasket		Appelez-nous	-
141	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
