SELECT A DIAGRAM

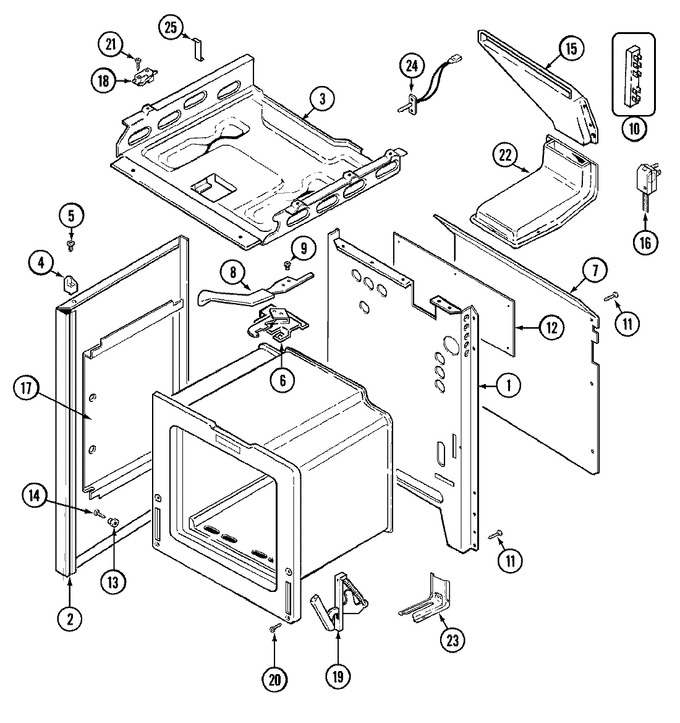

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74002364		Back, Main	10	Appelez-nous	-
2	74001884		Panel, Side (wht)	10	Appelez-nous	-
3	4011F250-80		Box, Burner	10	Appelez-nous	-
4	8010P087-60		Spacer, Main Top (lt)	10	Appelez-nous	-
4	8010P088-60		Spacer, Main Top (rt)	10	Appelez-nous	-
5	7101P313-60		Screw (8abx3/8-zn)	10	Appelez-nous	-
6	74001069		Latch, Door	10	Appelez-nous	-
6	74001084		Insulation, Door Latch	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	4005F331-51		Cover, Main Back Wire	10	Appelez-nous	-
8	74002974		Lever, Latch (gry)	10			$ 45.72
9	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	10			$ 4.29
10	7401P037-60		Block, Terminal	10	Appelez-nous	-
11	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
12	3604F165-51		Shield, Flue (lower)	10	Appelez-nous	-
13	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
14	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
15	4022W007-19		Extension, Flue Box	10	Appelez-nous	-
16	7402P043-60		Cord, Power	10	Appelez-nous	-
17	3804F103-51		Retainer, Insulation (side)	10	Appelez-nous	-
18	7403P361-60		Switch, Door Latch	10	Appelez-nous	-
18	7003P063-60		Insulator, Door Lock Switch	10	Appelez-nous	-
19	7106P056-60		Hinge	10	Appelez-nous	-
20	WP4159193		Screw   (Replaces: 7101P115-60)	10			$ 4.29
21	7101P330-60		Screw, Switch	10	Appelez-nous	-
22	4006W113-45		Box, Vent	10	Appelez-nous	-
23	WP3801F656-51		Kit, Bracket Anti-tip   (Replaces: 12400045)	10		Immediately	$ 4.69
23	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	10			$ 26.33
24	12001655		Probe, Oven Sensor   (Replaces: 7430P009-60)	10		Immediately	$ 41.01
25	3807F431-45		Support, Main Top	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
