SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Top Assembly

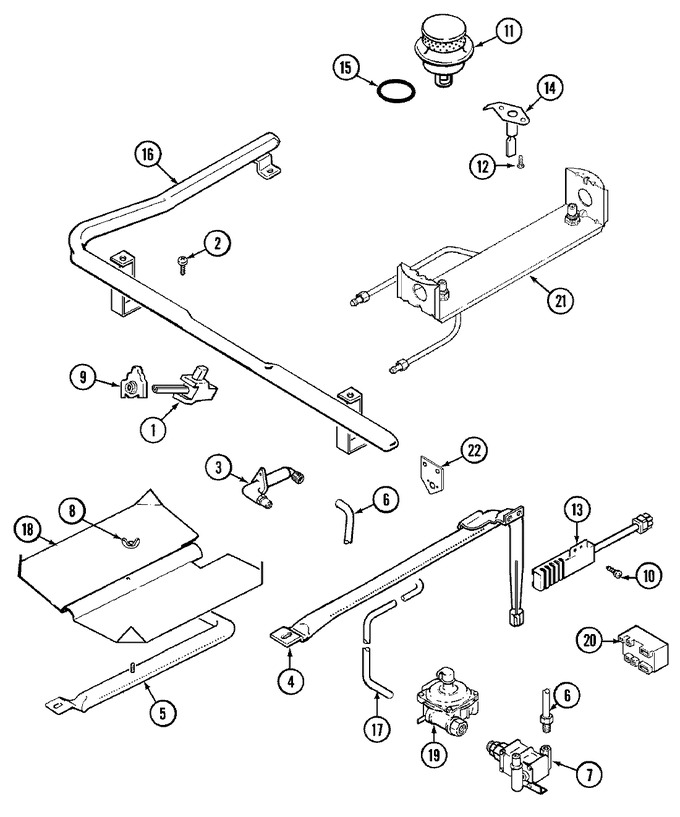

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7502P251-60		Valve, Top Burner	10	Appelez-nous	-
2	7101P044-60		Screw, Valve	10	Appelez-nous	-
3	7507P088-60		Fitting, Broil Burner	10	Appelez-nous	-
3	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	10		Immediately	$ 7.69
4	3807F446-45		Support, Burner	10	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	3403D043-45		Burner, Bake	10	Appelez-nous	-
4	WP3351614		Screw   (Replaces: 7101P328-60)	10		Immediately	$ 6.26
5	7101P287-60		Screw, Metal Grounding	10			$ 12.03
5	3403D024-45		Burner, Broil	10	Appelez-nous	-
6	1555258K		3/8`` Nut & Ferrule	10	Appelez-nous	-
6	3414F102-44		Tubing, Broil Burner (3/8``)	10	Appelez-nous	-
7	WP74006427		Valve, Oven   (Replaces: 7501P097-60)	10			$ 313.44
8	7103P030-60		Nut, Wing	10			$ 6.37
9	WP7403P279-60		Switch, Igniter   (Replaces: 7403P279-60)	10			$ 91.89
10	WP3351614		Screw   (Replaces: 7101P328-60)	10		Immediately	$ 6.26
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	WP3412D024-26		Sealed Burner Assy. (gry)   (Replaces: 3412D018-26)	10		Immediately	$ 90.27
12	WP59002061		Screw   (Replaces: 7101P315-60)	10			$ 6.98
13	4005F421-45		Cover,igniter	10	Appelez-nous	-
13	12400035		Igniter, Oven   (Replaces: 7432P076-60)	10		Immediately	$ 60.44
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	W10124350		Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner- Item No.11)	10	Appelez-nous	-
15	WP3412D024-09		Gasket, Burner   (Replaces: 7201P050-60)	10		Immediately	$ 92.69
16	7103P130-60		Nut, Loxit (3/8``)	10			$ 8.20
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	7513P120-60		Pipe, Manifold	10	Appelez-nous	-
17	74002553		Tubing, Regulator/pipe (3/8``)	10	Appelez-nous	-
17	1555258K		3/8`` Nut & Ferrule	10	Appelez-nous	-
18	3601F217-47		Baffle, Broil Burner	10	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
19	WP74006429		Regulator, Pressure   (Replaces: 7510P067-60)	10			$ 282.77
20	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
20	12001596		Module, Spark   (Replaces: 7431P027-60)	10		Immediately	$ 85.93
20	3801F341-45		Bracket, Spark Module	10	Appelez-nous	-
21	5187D035-60		Orifice Fitting Assembly	10	Appelez-nous	-
21	5187D034-60		Orifice Fitting Assembly	10	Appelez-nous	-
22	7101P287-60		Screw, Metal Grounding	10			$ 12.03
22	3605F186-45		Plate, Fitting	10	Appelez-nous	-
23	5140D038-60		Wires, Igniter (4 Or)	10	Appelez-nous	-
23	5125A312-60		Harness, Loose/burner Box	10	Appelez-nous	-
24	W10124350		Not Required Part Or See Note Lp Conversion Kit - N/a (converted On The Unit)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
