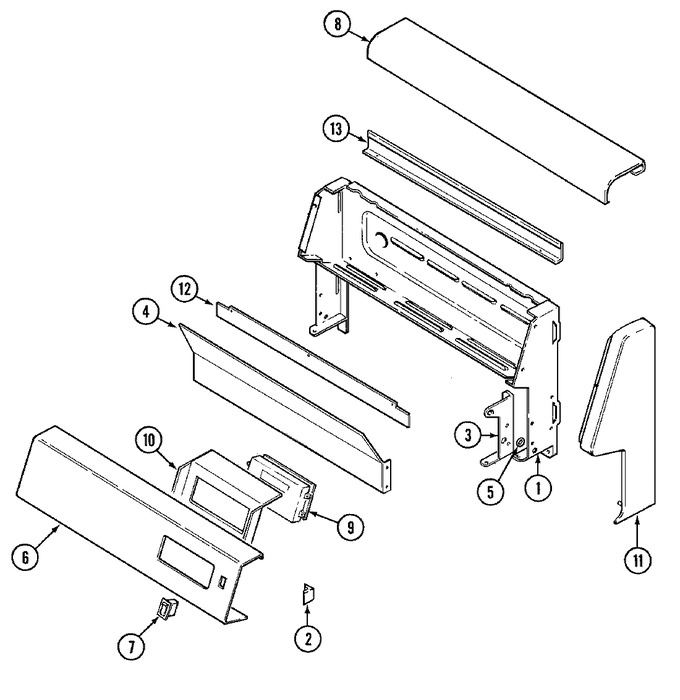

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74002162		Housing, Control Panel	10	Appelez-nous	-
2	8010P083-60		Spacer	10	Appelez-nous	-
2	WP59002061		Screw, Switch   (Replaces: 7101P148-60)	10			$ 6.98
3	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
3	3807F453-51		Support, Main Top (rt)	10	Appelez-nous	-
3	3807F454-51		Support, Main Top (lt)	10	Appelez-nous	-
4	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
4	3604F188-09		Shield, Flue	10	Appelez-nous	-
5	WP3195558		Nut, Speed   (Replaces: 7103P044-60)	10			$ 7.68
6	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	10		Immediately	$ 6.47
6	74002028		Panel, Control (wht)	10	Appelez-nous	-
7	7403P200-60		Switch, Rocker (wht)	10	Appelez-nous	-
8	74003257		Cover, Control Panel (wht)	10	Appelez-nous	-
9	74002031		Kit, Clock/overlay (white)	10	Appelez-nous	-
10	7101P333-60		Screw (wht)	10	Appelez-nous	-
10	74002099		Bracket, Clock	10	Appelez-nous	-
11	74002033		End Cap (rt-wht)	10	Appelez-nous	-
11	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
11	74002034		End Cap (lt-wht)	10	Appelez-nous	-
12	8036P003-60		Shield, Sight	10	Appelez-nous	-
12	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
13	74002039		Shield, Sight	10	Appelez-nous	-
14	5180D152-60		Harness, Control Panel	10	Appelez-nous	-
14	5170P204-60		Harness, Sensor & Lock	10	Appelez-nous	-
14	12001323		Wire/terminal Kit	10	Appelez-nous	-
15	74003059		Manual, Use & Care	10	Appelez-nous	-
16	16000327		Guide, Quick Ref. - Maytag	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
