01 - Oven


02 - Control Panel


03 - Oven Door, Literature


04 - Cooktop, Optional


05 - Internal Oven


06 - Convection Fan


07 - Utility Drawer And Rail


08 - Wiring Harness

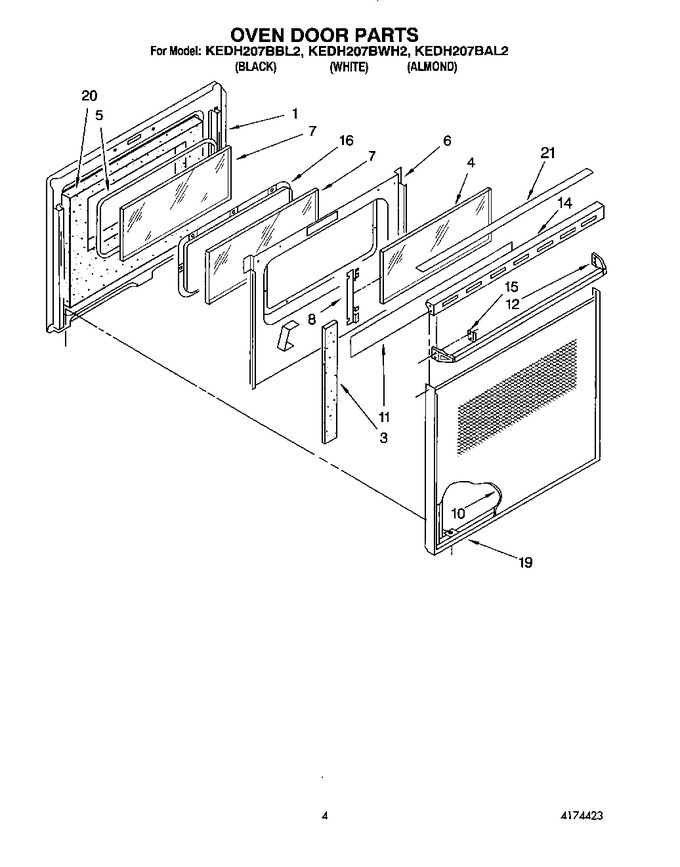

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3185647		Screw (4)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148159		Retainer, Insulation		Appelez-nous	-
6	4173601		Screw (4)		Appelez-nous	-
7	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 135.71
8	3188720		Retainer, Glass (2)		Appelez-nous	-
10	3188051		Glass, Panel (almond Model)		Appelez-nous	-
10	3188050		Glass, Panel (white Model)		Appelez-nous	-
10	3188052		Glass, Panel (black Model)		Appelez-nous	-
11	3188706		Foil, Door		Appelez-nous	-
12	3186526		Handle, Door (almond)		Appelez-nous	-
12	3186525		Handle, Door (white)		Appelez-nous	-
12	WP355515		Handle, Door (screw (4))   (Replaces: 355515)				$ 6.90
12	3186524		Handle, Door (black)		Appelez-nous	-
14	3148223		Top, Door (black Model)		Appelez-nous	-
14	3149355		Top, Door (white Or Almond Model)		Appelez-nous	-
15	3149333		Screw				$ 5.33
15	3148282		Clip, Mtg (2)				$ 8.69
15	3185918		Screw		Appelez-nous	-
16	3148234		Frame, Glass		Appelez-nous	-
16	3185647		Screw (6)		Appelez-nous	-
19	3148235		Frame, Glass Panel		Appelez-nous	-
20	3147951		Insulation		Appelez-nous	-
21	3181363		Cap, Top Door (black & White Model)		Appelez-nous	-
21	3188375		Cap, Top Door (almond Model)		Appelez-nous	-
	LIT3182755		Tech Sheet		Appelez-nous	-
	LIT3183987		Guide, Auto Set		Appelez-nous	-
	LIT3150693		Cookbook		Appelez-nous	-
	LIT3188264		Use & Care Guide		Appelez-nous	-
	LIT3184873		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
