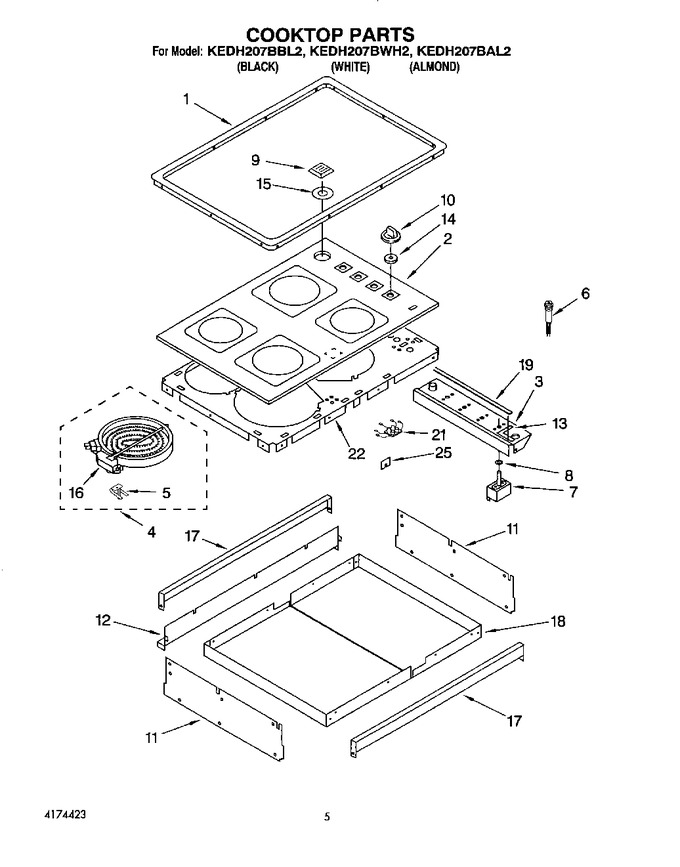

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3187745 | Trim Ring, Cooktop (white) |
|
- | |||||
| 1 | 3187744 | Trim Ring, Cooktop (black) |
|
- | |||||
| 1 | 3187746 | Trim Ring, Cooktop (almond) |
|
- | |||||
| 1 | 4168863 | Trim Ring, Cooktop (screw (14)) |
|
- | |||||
| 2 | 3185583 | Cooktop, Glass (white) |
|
- | |||||
| 2 | 3185582 | Cooktop, Glass (black Or Almond Model) |
|
- | |||||
| 3 | 3187584 | Bracket, Switch Mounting |
|
- | |||||
| 4 | 3184955 | Element, Surface (1800w Right Front) |
|
- | |||||
| 4 | 3184952 | Element, Surface (1400w Left Rear) |
|
- | |||||
| 4 | 3184958 | Element, Surface (2200w Right Rear) |
|
- | |||||
| 4 | 3184960 | Element, Surface (2400w Left Front) |
|
- | |||||
| 5 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 5 | 3187707 | Spring Locator (8) |
|
- | |||||
| 6 | 3187750 | Light, Indicator |
|
- | |||||
| 7 | 3148963 | Switch, Infinite (use W/2200w Right Rear Burner) |
|
- | |||||
| 7 | 3148949 | Switch, Infinite (use W/1400w Left Rear Burner) |
|
$ 67.77 | |||||
| 7 | 3148950 | Switch, Infinite (use W/1800w Right Front Burner) |
|
$ 28.56 | |||||
| 7 | 3148958 | Switch, Infinite (use W/2400w Left Front Burner) |
|
- | |||||
| 8 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 8 | 309839 | Seal, Switch Cover |
|
- | |||||
| 9 | 3182496 | Cover, Vent (black) |
|
- | |||||
| 9 | 3182497 | Cover, Vent (white) |
|
- | |||||
| 9 | 3182498 | Cover, Vent (almond) |
|
- | |||||
| 10 | 3150096 | Knob, Control (4) (white) |
|
- | |||||
| 10 | 3150097 | Knob, Control (4) (almond) |
|
- | |||||
| 10 | 3150100 | Knob, Control (4) (black) |
|
$ 21.50 | |||||
| 11 | WP488729 | Screw (3) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 11 | 3188527 | Plate, Mounting |
|
- | |||||
| 12 | 3148443 | Screw (4) |
|
- | |||||
| 12 | 3188528 | Cover, Rear |
|
- | |||||
| 13 | 3185617 | Seal, Cooktop |
|
- | |||||
| 14 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 15 | 3187523 | Seal, Vent |
|
- | |||||
| 16 | 3187535 | Switch, Limit (use W/3184960 Element) |
|
- | |||||
| 16 | 3187528 | Switch, Limit (use W/3184952 Element) |
|
- | |||||
| 16 | 3187533 | Switch, Limit (use W/3184958 Element) |
|
- | |||||
| 16 | 3187530 | Switch, Limit (use W/3184955 Element) |
|
- | |||||
| 17 | 3188526 | Bracket, Support |
|
- | |||||
| 18 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 18 | 3187753 | Sheild, Heat |
|
- | |||||
| 18 | 3148443 | Screw |
|
- | |||||
| 19 | 3185590 | Seal, Silicone (large (2)) |
|
- | |||||
| 19 | 3185589 | Seal, Silicone (small (3)) |
|
- | |||||
| 21 | 3150304 | Lamp, Hot Surface Indicator |
|
- | |||||
| 22 | 3188432 | Plate, Backing |
|
- | |||||
| 25 | 3179589 | Wire, Tie |
|
- | |||||
| 25 | 3187754 | Grommet, Wire Way |
|
- | |||||
| 25 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 25 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 25 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 25 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 25 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 25 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 25 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 25 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 25 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 25 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 25 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 25 | 8212471 | Touch-up (Replaces: 242756) |
|
Immediately | $ 74.76 | ||||
| 25 | 261582 | Grease |
|
- | |||||
| 25 | CERAMABRYTE | Cleaner, Glass (Replaces: 3184477) |
|
Immediately | $ 9.95 | ||||
| 25 | 3185260 | Mounting Hardware |
|
- | |||||
| 25 | 242820 | Wire (14 Ga. 150 C Black) |
|
- |
