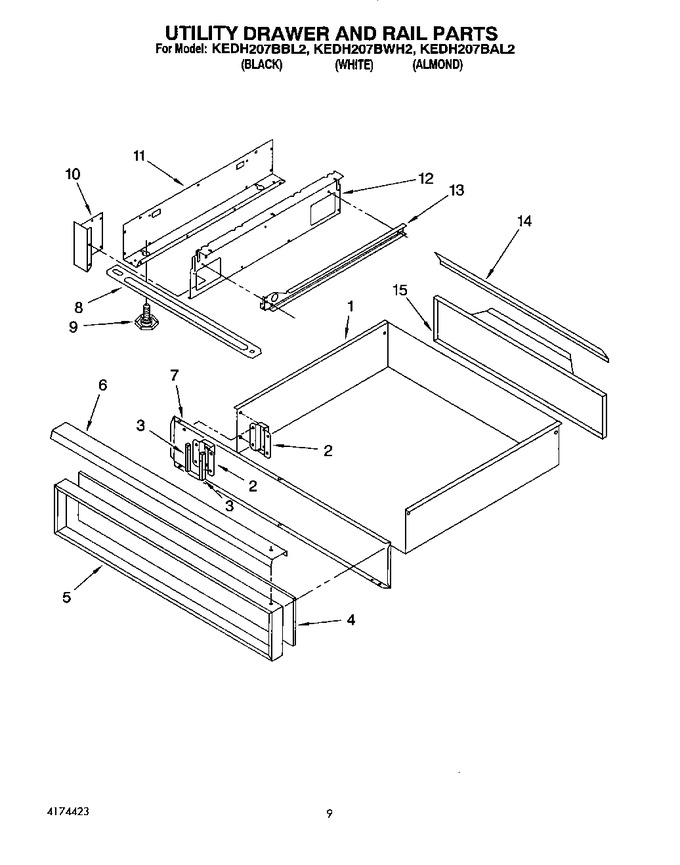

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183571		Drawer, Utility		Appelez-nous	-
2	3185163		Bracket, Mounting		Appelez-nous	-
2	WP488729		Screw (12)   (Replaces: 3148107)			Immediately	$ 7.01
3	3147603		Seal, Foam (4)		Appelez-nous	-
4	3185227		Glass, Drawer Front (almond)		Appelez-nous	-
4	3185228		Glass, Drawer Front (white)		Appelez-nous	-
4	3185226		Glass, Drawer Front (black)		Appelez-nous	-
5	WP488729		Screw (3)   (Replaces: 3148107)			Immediately	$ 7.01
5	310423		Fastener (2)		Appelez-nous	-
5	3185131		Frame, Outer		Appelez-nous	-
6	3185208		Handle, Drawer (almond)		Appelez-nous	-
6	WP355515		Handle, Drawer (screw, White Or Almond Model (3))   (Replaces: 355515)				$ 6.90
6	3185207		Handle, Drawer (black)		Appelez-nous	-
6	3185206		Handle, Drawer (white)		Appelez-nous	-
6	309133		Handle, Drawer (screw)		Appelez-nous	-
7	3186695		Panel, Back		Appelez-nous	-
8	3183441		Bracket		Appelez-nous	-
8	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
9	WPW10058460		Foot, Range (2)   (Replaces: 312701)			Immediately	$ 7.07
10	3185141		Cap, Front (right Hand)		Appelez-nous	-
10	3185142		Cap, Front (left Hand)		Appelez-nous	-
11	3185144		Support, Outer Drawer		Appelez-nous	-
12	3185147		Support, Inner Drawer		Appelez-nous	-
13	3185211		Track, Drawer (right Hand)		Appelez-nous	-
13	3185210		Track, Drawer (left Hand)		Appelez-nous	-
13	WP488729		Track, Drawer (screw (11))   (Replaces: 3148107)			Immediately	$ 7.01
14	3185225		Baffle, Drip		Appelez-nous	-
14	WP488729		Screw (3)   (Replaces: 3148107)			Immediately	$ 7.01
15	247326		Screw		Appelez-nous	-
15	3185154		Panel, Back		Appelez-nous	-
15	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
