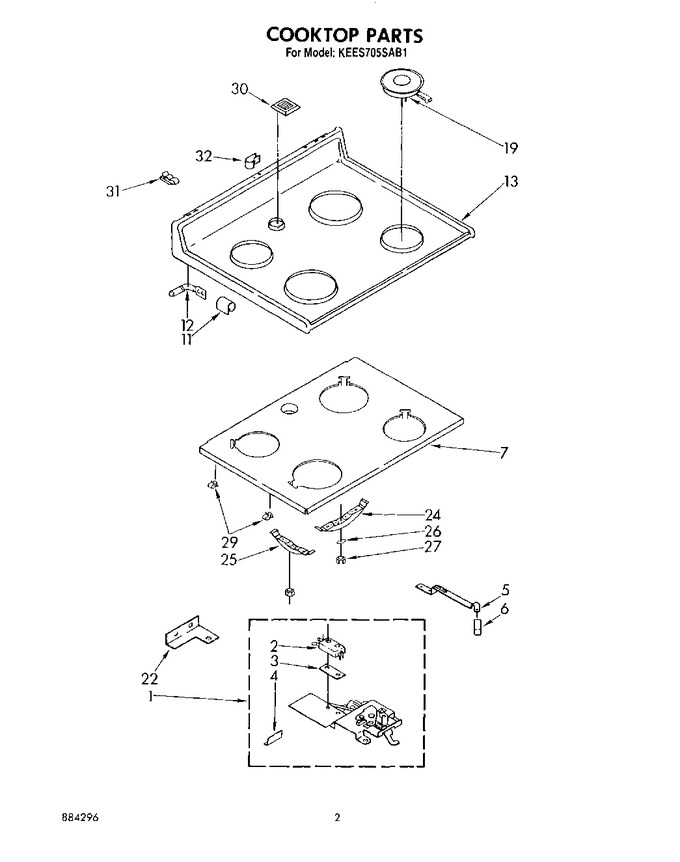

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 1 | 328585 | Latch Assembly (pyro) |
|
- | |||||
| 2 | 308185 | Safety Switch |
|
- | |||||
| 2 | 98106 | Screw (2) |
|
- | |||||
| 3 | 309245 | Insulator, Switch |
|
- | |||||
| 4 | 313035 | Shield, Latch Terminal |
|
- | |||||
| 4 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 6.84 | |||||
| 4 | 309258 | Screw, 6 X 3/8b (2) |
|
- | |||||
| 5 | 3147065 | Handle, Latch |
|
- | |||||
| 5 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 313349) |
|
$ 6.81 | |||||
| 5 | 311056 | Screw (2) |
|
- | |||||
| 5 | 308422 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 6 | 3147064 | Knob, Latch |
|
- | |||||
| 7 | 3148048 | Support, Cooktop |
|
- | |||||
| 11 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 11 | 307965 | Bracket, Cooktop (2) |
|
- | |||||
| 12 | 307966 | Pin, Cooktop (2) |
|
- | |||||
| 12 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 13 | 3147254 | Cooktop (white) |
|
- | |||||
| 13 | 3147256 | Cooktop (almond) |
|
- | |||||
| 13 | WP681414 | Cooktop (screw 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 19 | WP3147131 | Unit, Surface 6`` (2) (Replaces: 3147131) |
|
$ 244.76 | |||||
| 19 | WP3147132 | Unit, Surface (8`` (2)) (Replaces: 3147132) |
|
$ 272.69 | |||||
| 22 | 312320 | Shield, Insulation |
|
- | |||||
| 22 | 307748 | Screw, 10a X 1/2 |
|
- | |||||
| 24 | 3147703 | Bracket, Mounting 6``(2) |
|
- | |||||
| 25 | 3147704 | Bracket, Mounting 8`` (2) |
|
- | |||||
| 26 | 3147191 | Spring, Leaf (4) |
|
- | |||||
| 27 | 3147189 | Nut (4) |
|
- | |||||
| 29 | 311311 | Clip, Wire (4) |
|
- | |||||
| 30 | 3147037 | Cover, Vent |
|
- | |||||
| 31 | 313570 | Clamp, Tube |
|
- | |||||
| 32 | 308609 | Strain, Relief |
|
- |
