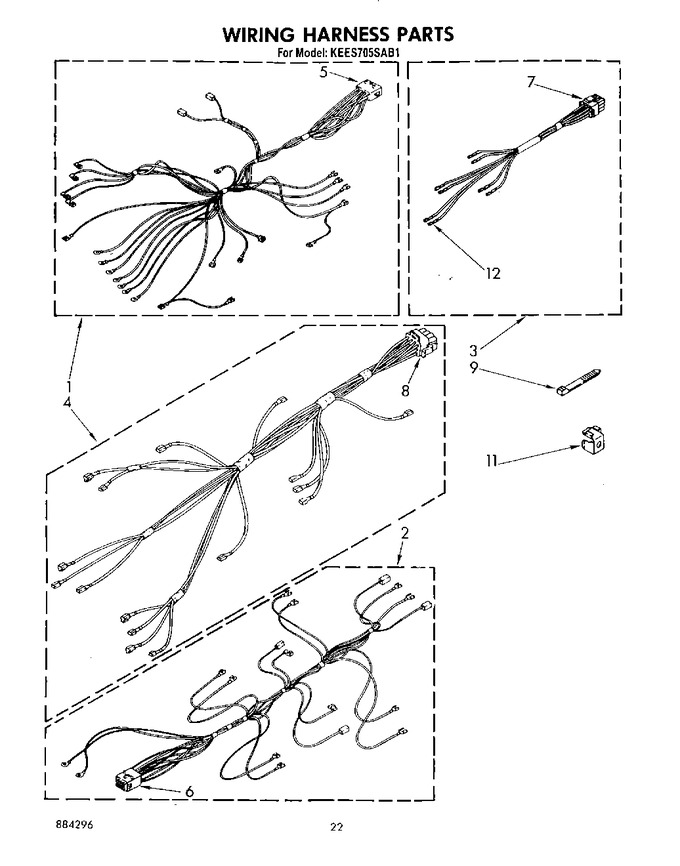

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3147970		Harness, Wiring (oven)		Appelez-nous	-
2	3147549		Wiring Harness (infinite Switch)		Appelez-nous	-
3	3147585		Harness Wiring (surface Unit)		Appelez-nous	-
4	3147561		Harness, Wiring (selector/ Thermostat)		Appelez-nous	-
5	309408		Disconnect Block		Appelez-nous	-
6	309409		Disconnect Block		Appelez-nous	-
7	309406		Disconnect Block		Appelez-nous	-
8	309405		Disconnect Block		Appelez-nous	-
9	WPW10339879		Cable, Tie   (Replaces: 309330)				$ 7.11
11	3147832		Adapter, Terminal		Appelez-nous	-
12	3147138		Sleeve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
