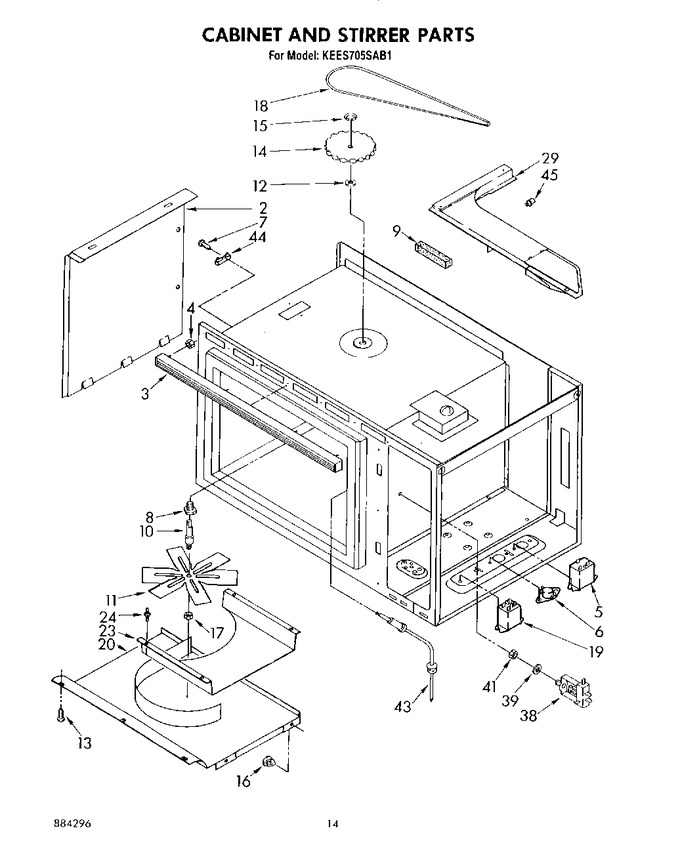

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3147004		Cover, Side		Appelez-nous	-
2	WP488729		Screw, 8-18 X .50 (4)   (Replaces: 313638)			Immediately	$ 7.01
3	3148436		Grill, Air		Appelez-nous	-
4	3147378		Nut (3)		Appelez-nous	-
5	314125		Relay, Vent		Appelez-nous	-
5	246131		(24v, Clear) (screw, 6ab X 3/8 (2))		Appelez-nous	-
6	3147274		Thermostat		Appelez-nous	-
6	246231		Screw, 6ab X 3/8 (2)		Appelez-nous	-
7	312713		Screw, 8-32 X 3/8 Pan Head Phillips		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
9	3147599		Seal, Foam		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
13	313816		Screw, 8-32 X 1/2 (3)		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
16	313740		Fastener (4)		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	WP313646		Belt, Drive   (Replaces: 313646)				$ 76.05
19	246131		Screw, 6ab X 3/8 (2)		Appelez-nous	-
19	697811		Relay, Oven (120v, Black)   (Replaces: 3147643)		Appelez-nous	-
20	313563		Stirrer Cover		Appelez-nous	-
23	313735		Plate, Tuning		Appelez-nous	-
24	313739		Support (4)		Appelez-nous	-
29	310423		Fastener		Appelez-nous	-
29	3147003		Baffle, Air Exhaust		Appelez-nous	-
38	314297		Probe Jack		Appelez-nous	-
39	313105		Washer, Internal Lock		Appelez-nous	-
41	313104		Nut		Appelez-nous	-
43	313527		Probe, Temperature		Appelez-nous	-
44	313855		Fuse, Thermal		Appelez-nous	-
45	3147060		Sensor, Gas		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
