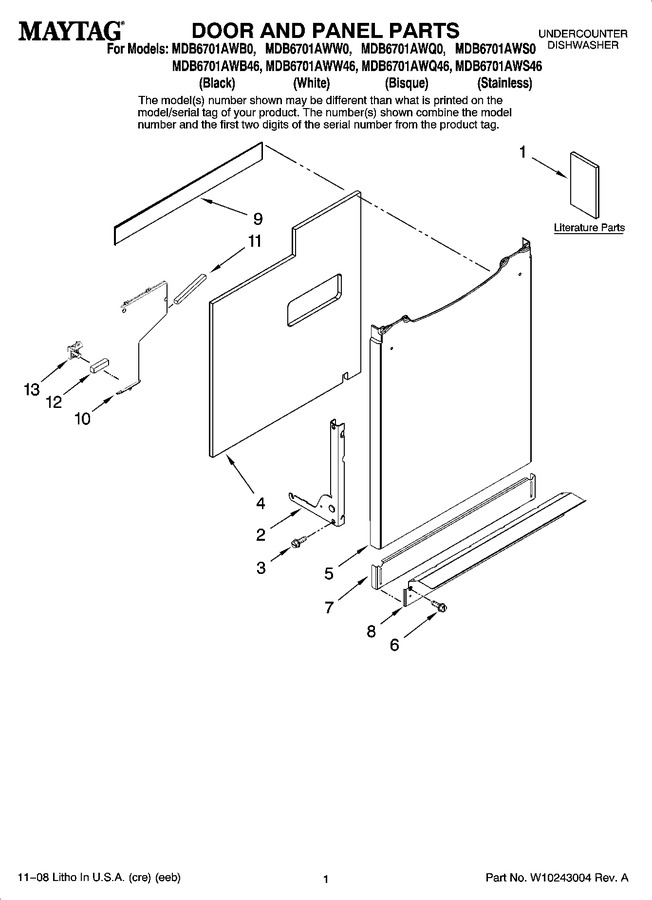

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208036 | Energy Guide |
|
- | |||||
| 1 | W10157789 | Guide, Use & Care |
|
- | |||||
| 1 | W10158012 | Instructions, Installation |
|
- | |||||
| 2 | W10202226 | Bracket, Hinge (left) |
|
- | |||||
| 2 | WPW10118637 | Bracket, Hinge (right) (Replaces: W10202227) |
|
$ 233.73 | |||||
| 3 | 99001075 | Screw |
|
$ 5.81 | |||||
| 4 | Y99002587 | Pad, Foam |
|
- | |||||
| 5 | 99003299 | Panel, Front (black) |
|
- | |||||
| 5 | 99003300 | Panel, Front (white) |
|
- | |||||
| 6 | 99001194 | Screw (white) |
|
$ 6.18 | |||||
| 6 | WP6-912366 | Screw (black) (Replaces: 912366) |
|
$ 7.29 | |||||
| 7 | 99002766 | Panel, Toe (white) |
|
- | |||||
| 7 | 99002767 | Panel, Toe (bisque) |
|
- | |||||
| 7 | 99002765 | Panel, Toe (black) |
|
- | |||||
| 8 | 99003152 | Support, Front (black) |
|
- | |||||
| 8 | 99003153 | Support, Front (white) |
|
- | |||||
| 9 | W10117748 | Insulation, Door |
|
$ 24.37 | |||||
| 10 | W10185633 | Liner, Door Secondary |
|
$ 8.74 | |||||
| 11 | 99003481 | Foam Strip (short) |
|
$ 8.34 | |||||
| 12 | 99003482 | Foam Strip (long) |
|
$ 7.75 | |||||
| 13 | 99003541 | Bracket, Secondary Door Liner |
|
- |
