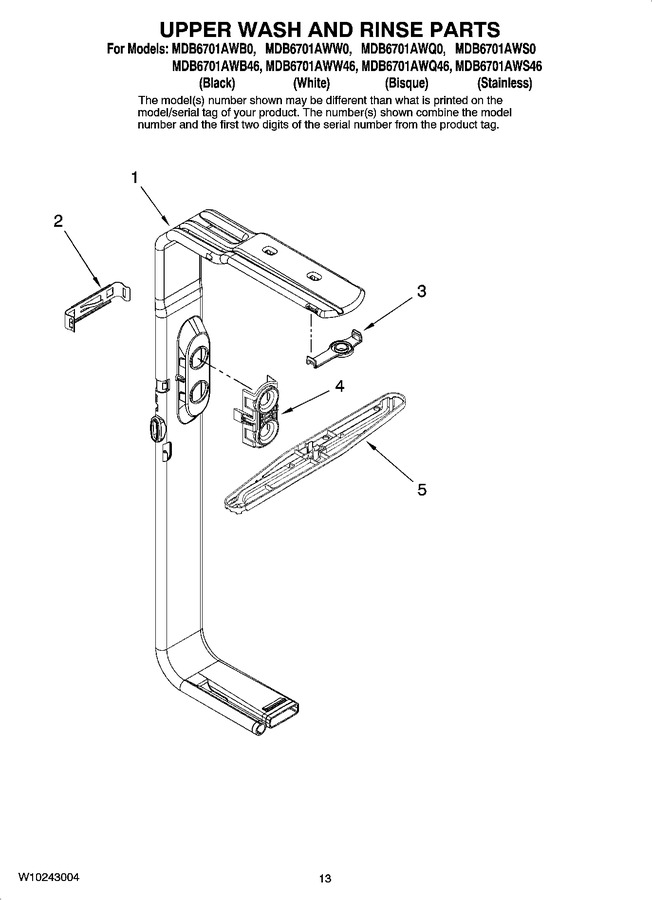

10 - Upper Wash And Rinse Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99003081		Feed Tube Assembly				$ 82.70
2	99002643		Bracket				$ 5.84
3	99002753		Retainer, Top Wash Arm				$ 5.84
4	99003143		Station, Docking (with Flapper)		Appelez-nous	-
5	99002676		Wash Arm, Top (with Retainer)		Appelez-nous	-
NI	4396277		Moisture Barrier Kit (kit)				$ 37.05
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
NI	8212488RC		Kit Installation (includes Power Cord, 6 Ft. Fill Hardware For Installation)				$ 86.67
NI	48337N		Kit, Installation (includes 6 Ft. Fill Hose And For Installation)   (Replaces: 4396897RP)			Immediately	$ 37.80
NI	8212486		Drain Hose (12 Ft.)				$ 62.17
NI	4396897RW		Drain Hose (6 Ft.)				$ 47.67
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81

    View Diagram in Separate Window       Print Part List
