Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 99003537 Harness, Wiring Appelez-nous -
2 W10169387 Grill, Air/water Inlet Special Order $ 36.21

3 99002186 Seal, Air/water Inlet Special Order $ 7.89

4 99003243 Cap, Rinse Aid Appelez-nous -
5 99003322 Dispenser, Rinse Aid Appelez-nous -
6 W10190890 Inlet, Air/water Special Order $ 84.95

7 Y912620 Screw, Door Special Order $ 5.48

8 W10170234 Inner Door Appelez-nous -
9 99003316 Bracket, Dispenser Appelez-nous -
10 WP33002917 Screw   (Replaces: 912615) In-Stock Immediately $ 6.90


    View Diagram in Separate Window     Print Icon   Print Part List

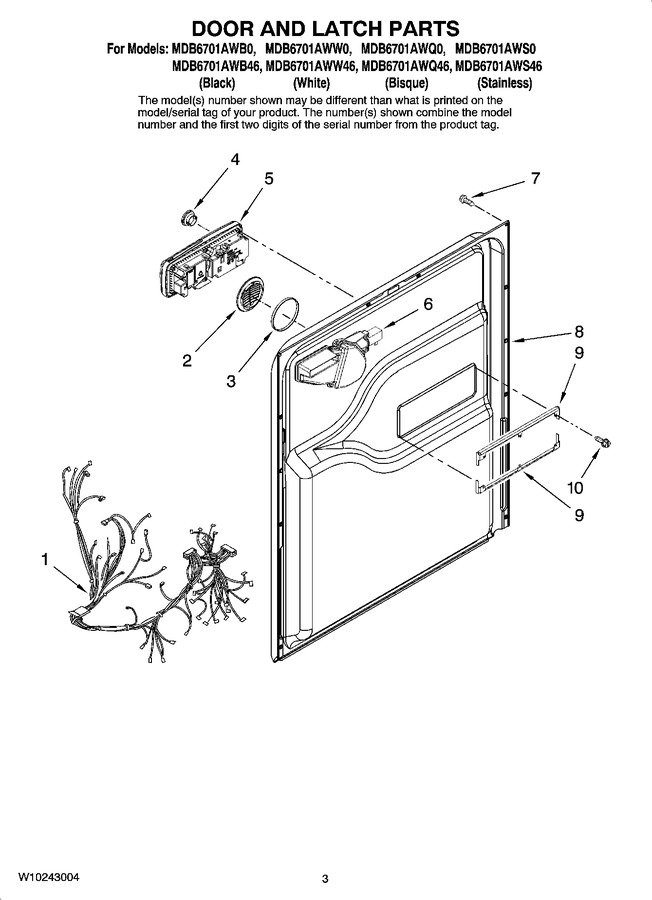

Diagram for MDB6701AWB46
