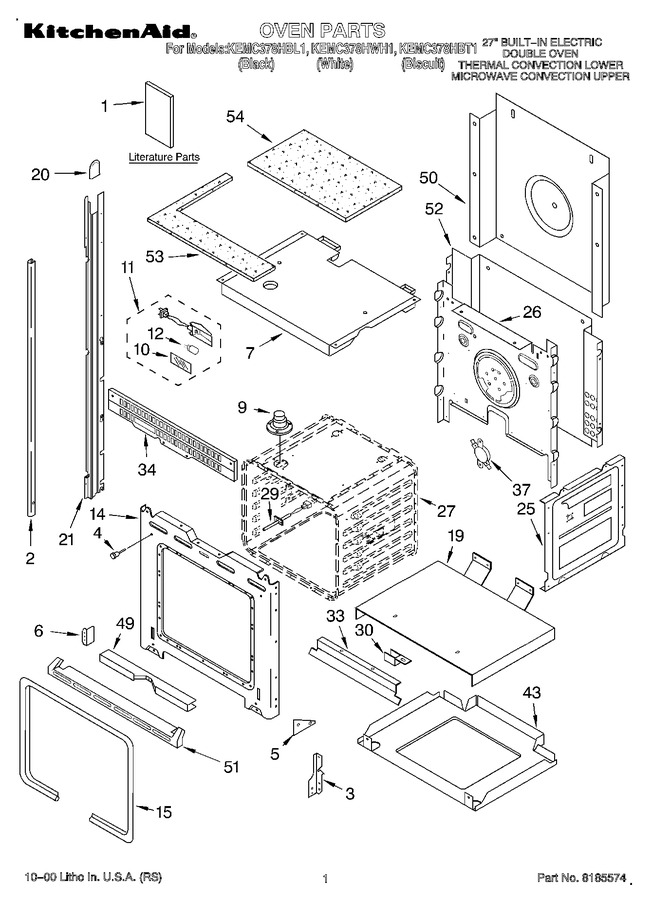

01 - Oven, Literature


02 - Control Panel


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Compartment


08 - Top Venting


09 - Microwave Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450412		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4452300		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT4452614		Literature Parts (use & Care Guide (microwave))		Appelez-nous	-
1	LIT4450786		Literature Parts (cooking Guide (lable))		Appelez-nous	-
1	LIT4449066		Literature Parts (cookbook (t/c Oven))		Appelez-nous	-
1	LIT4452295		Literature Parts (tech Sheet (oven))		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide (oven))		Appelez-nous	-
1	LIT4451052		Literature Parts (guide, Easy Use (microwave))		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	4455430		Trim, Side (rh Black)				$ 67.89
2	4455431		Trim, Side (lh Black)				$ 65.17
2	4455434		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4455433		Trim, Side (lh White)		Appelez-nous	-
2	4455435		Trim, Side (lh Biscuit Screw)		Appelez-nous	-
2	WP8281236		Trim, Side (black)   (Replaces: 4449747)				$ 6.80
2	4449041		Trim, Side (white)				$ 5.27
2	4455432		Trim, Side (rh White)		Appelez-nous	-
3	4455594		Reciever, Hinge (left Hand)		Appelez-nous	-
3	4455595		Reciever, Hinge (right Hand)		Appelez-nous	-
4	4448520		Bumper, Door				$ 19.07
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 80.58
6	4455510		Bracket, Support		Appelez-nous	-
7	4455285		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 98.46
11	4449748		Screw				$ 12.20
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 60.59
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4451739		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 159.09
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4451477		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 6.80
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 6.73
21	4450584		Rail, Side (left Side)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
26	4452233		Back, Chassis		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 86.25
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
30	4449845		Bracket-support		Appelez-nous	-
33	4452495		Deflector, Vent		Appelez-nous	-
34	4159465		Screw		Appelez-nous	-
34	4451666		Vent, Center		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 49.90
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
43	4455529		Base, Chassis		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 128.63
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
51	4455444		Trim, Bottom (white Model)		Appelez-nous	-
51	4452152		Trim, Bottom (bracket, Vent Mounting)				$ 30.15
51	4455442		Trim, Bottom (black)		Appelez-nous	-
51	4455446		Trim, Bottom (biscuit)		Appelez-nous	-
52	4451755		Chassis, Back		Appelez-nous	-
53	4452492		Insulation, Convection Top		Appelez-nous	-
54	4450364		Insulation, Back		Appelez-nous	-
54	4452491		Insulation, Convection Grill		Appelez-nous	-
54	4449315		Insulation, Wrap				$ 64.81
