Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4451759 Vent, Exhaust Special Order $ 90.01

2 4455178 Elbow, Vent- Top Special Order $ 13.30

3 4455177 Elbow, Vent- Bottom Special Order $ 9.77

5 W10491987 Seal, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98

9 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

9 4450407 Baffle, Rear Appelez-nous -
10 4451424 Latch Assembly Special Order $ 149.58

11 4451663 Solenoid Appelez-nous -
12 4452312 Microswitch N.c. Special Order $ 90.43

13 4451426 Microswitch Appelez-nous -
14 4451537 Spring, Latch Appelez-nous -
16 4455191 Plate, Service Appelez-nous -
16 WPW10016550 Blower   (Replaces: 6610168) In-Stock Immediately $ 255.27


    View Diagram in Separate Window     Print Icon   Print Part List

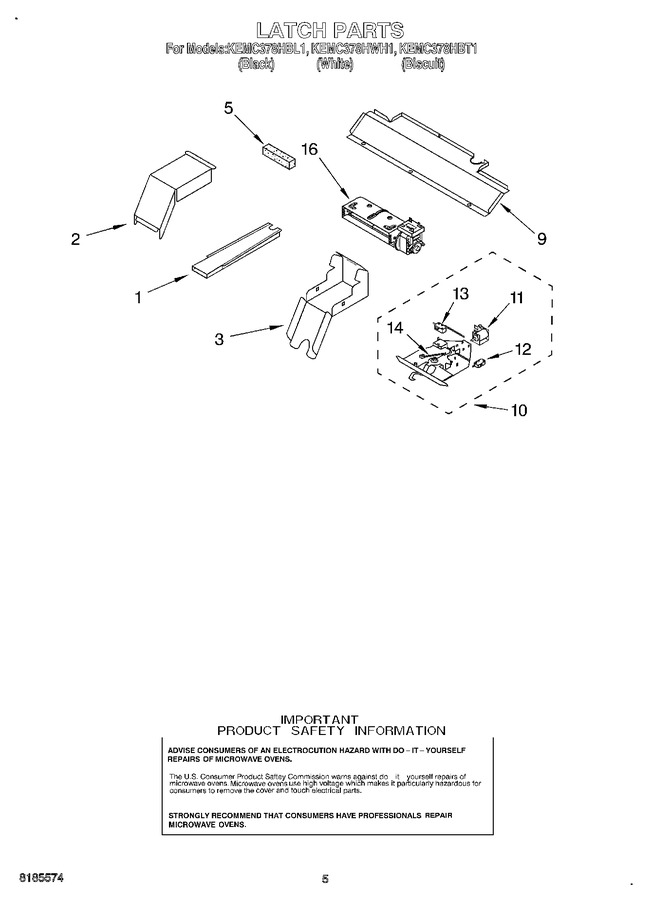

Diagram for KEMC378HBT1
