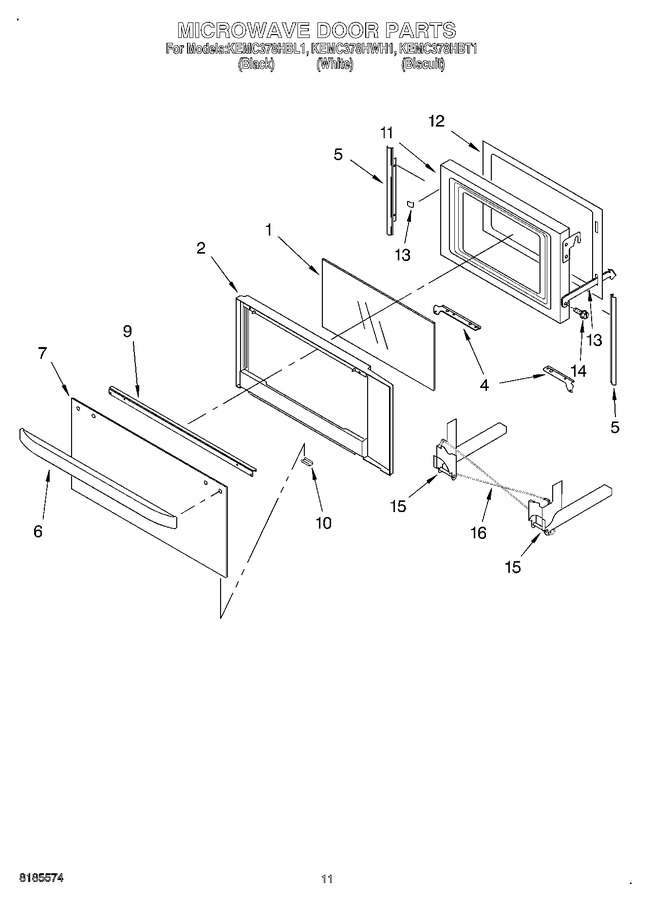

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4448937		Glass, Middle				$ 66.02
2	4450945		Frame, Door		Appelez-nous	-
2	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
2	4450265		Tape, Foam		Appelez-nous	-
4	WP4449809		Bracket, Mounting (screw)   (Replaces: 4449809)			Immediately	$ 6.47
4	4449141		Bracket, Mounting (right Side)				$ 31.33
4	4449142		Bracket, Mounting (left Side)				$ 52.12
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4449083		Filler, Side				$ 36.44
6	4452501		Handle, Door (white)		Appelez-nous	-
6	4452500		Handle, Door (black)		Appelez-nous	-
6	4452870		Handle, Door (biscuit)		Appelez-nous	-
7	4452994		Glass, Outer (biscuit)		Appelez-nous	-
7	4452788		Glass, Outer (white)		Appelez-nous	-
7	4452210		Glass, Outer (black)		Appelez-nous	-
9	4452330		Bracket, Handle		Appelez-nous	-
9	WPW10132940		Screw   (Replaces: 3196184)				$ 8.50
10	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
10	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
11	4375339		Plate, Door		Appelez-nous	-
12	4375414		Frame, Inner		Appelez-nous	-
13	4375330		Strap, Door		Appelez-nous	-
14	4375313		Screw		Appelez-nous	-
15	WP4375324		Hinge, Door (right)   (Replaces: 4375324)				$ 79.40
15	WP4375323		Hinge, Door (left)   (Replaces: 4375323)				$ 79.70
16	4452400		Lead, Ground				$ 38.93
16	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
16	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
16	4378950		Filler Kit (bl)		Appelez-nous	-
16	4378951		Filler Kit (wh)		Appelez-nous	-
16	4378952		Filler Kit (al)		Appelez-nous	-
16	814381		Kit, Pin Hinge				$ 7.73
16	WP4448950		Screw, Installation   (Replaces: 4448950)				$ 6.80
16	4452239		Harness, Latch		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
16	4455732		Harness, Main		Appelez-nous	-
16	4450831		Ground (m/w)				$ 7.43
16	4450800		Screw				$ 11.55
16	4450950		Conduit, Combo		Appelez-nous	-
16	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
16	4452222		Spacer, Harness		Appelez-nous	-
16	WPW10339879		Tie, Cable   (Replaces: 4454835)				$ 7.11
16	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
16	WP4451008		Spring, Torsion   (Replaces: 4451008)				$ 114.84
16	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
16	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
16	261900		Citrine White				$ 51.34
16	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
16	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
16	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
16	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
16	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
16	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
16	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
16	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
16	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
16	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
16	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
16	242831		Wire (14 Ga. 200 C Red)				$ 342.23
16	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
16	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
