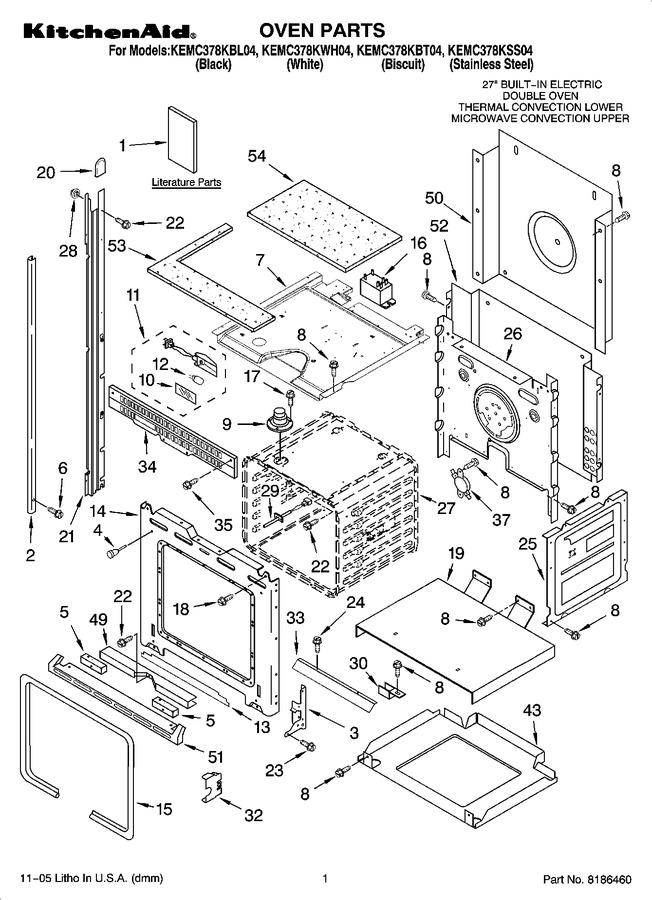

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Top Venting Parts


09 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	9759133		Safer Cooking Tips		Appelez-nous	-
1	8300653		Installation Instructions		Appelez-nous	-
1	8304066		Use & Care Guide (oven)		Appelez-nous	-
1	8304067		Use & Care Guide (microwave)		Appelez-nous	-
1	4450786		Cooking Guide (lable)		Appelez-nous	-
1	8303852		Tech Sheet (oven)		Appelez-nous	-
1	4449264		Easy Set Guide (oven)		Appelez-nous	-
1	4451052		Guide, Easy Use (microwave)		Appelez-nous	-
2	4455431		Trim, Side (lh Black)				$ 65.17
2	4455433		Trim, Side (lh White)		Appelez-nous	-
2	4455435		Trim, Side (lh Biscuit)		Appelez-nous	-
2	4452084		Trim, Side (s.steel)		Appelez-nous	-
2	4452083		Trim, Side (rh S. Steel)		Appelez-nous	-
2	4455434		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4455432		Trim, Side (rh White)		Appelez-nous	-
2	4455430		Trim, Side (rh Black)				$ 67.89
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
4	4448520		Bumper, Door				$ 19.07
5	4452490		Spacer, Foam				$ 34.83
6	WP8281236		Screw (black)   (Replaces: 8281236)				$ 6.80
6	4449041		Screw (white)				$ 5.27
7	4455864		Top, Chassis				$ 22.85
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 98.46
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 60.59
13	4452336		Insulation, Bottom Vent		Appelez-nous	-
14	4455611		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 159.09
16	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 172.43
17	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
18	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
19	4451477		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	4450584		Rail, Side (left Side)		Appelez-nous	-
22	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
23	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
24	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 129.16
26	4452233		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
28	WP4448444		Grommet   (Replaces: 4448444)				$ 6.73
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 86.25
30	4449845		Bracket-support		Appelez-nous	-
32	4452152		Bracket, Mounting- Bottom Vent				$ 30.15
33	9760676		Deflector, Vent		Appelez-nous	-
34	4451666		Vent, Center		Appelez-nous	-
35	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 9759243)			Immediately	$ 49.90
43	4455529		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 128.63
51	4455442		Trim, Bottom (black)		Appelez-nous	-
51	4455146		Trim, Bottom (stainless Steel)		Appelez-nous	-
51	4455446		Trim, Bottom (biscuit)		Appelez-nous	-
51	4455444		Trim, Bottom (white)		Appelez-nous	-
52	4451755		Chassis, Back		Appelez-nous	-
53	4452492		Insulation, Convection Top		Appelez-nous	-
54	4450364		Insulation, Back		Appelez-nous	-
54	4452491		Insulation, Convection Grill		Appelez-nous	-
54	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
54	4449315		Insulation, Wrap				$ 64.81
