SELECT A DIAGRAM

01 - Oven Parts

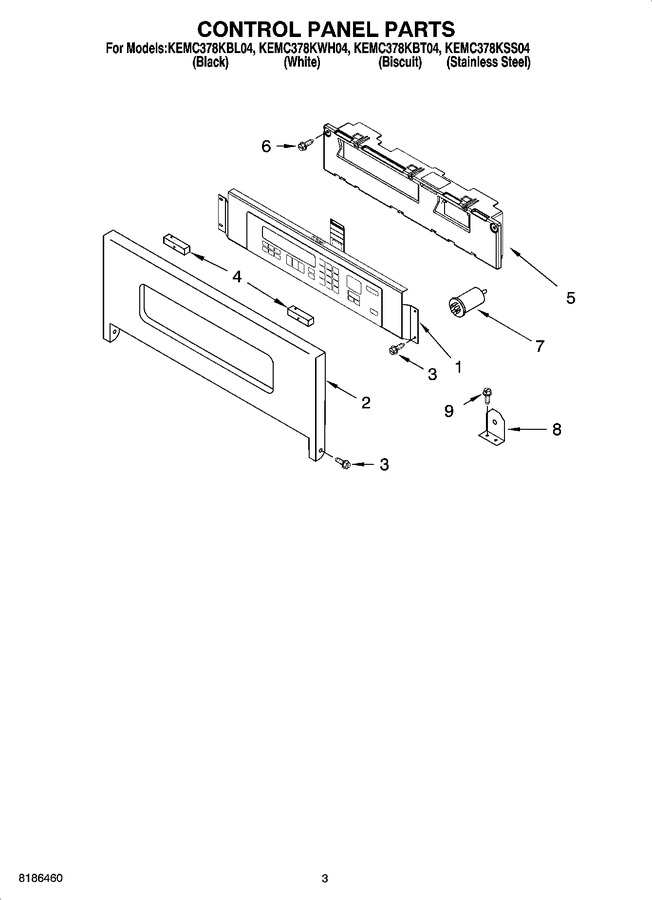

02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Top Venting Parts


09 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8302669		Switch, Membrane (black)				$ 275.71
1	8302673		Switch, Membrane (white)		Appelez-nous	-
1	8302671		Switch, Membrane (biscuit)		Appelez-nous	-
1	8302659		Switch, Membrane (stainless Steel)		Appelez-nous	-
2	4452602		Panel, Control (black)		Appelez-nous	-
2	4452603		Panel, Control (white)		Appelez-nous	-
2	4452973		Panel, Control (biscuit)		Appelez-nous	-
2	4451790		Panel, Control (stainless Steel)		Appelez-nous	-
3	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
4	4452260		Spacer, Foam		Appelez-nous	-
5	8302346		Assy, Control				$ 530.26
6	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
7	4451592		Filter				$ 35.89
8	4451632		Bracket, Filter		Appelez-nous	-
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47

    View Diagram in Separate Window       Print Part List
