SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts

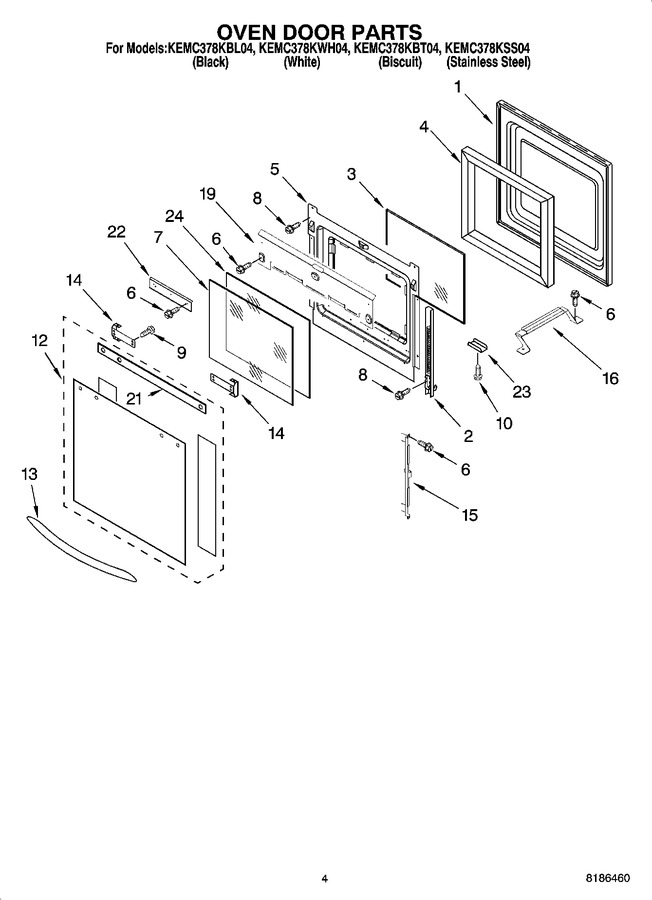

03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Top Venting Parts


09 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Door Liner				$ 128.78
2	WP9760575		Hinge, Door (r.side (s.stl Mdl))   (Replaces: 9760575)			Immediately	$ 58.11
2	WP9760571		Hinge, Door (r.side)   (Replaces: 9760571)			Immediately	$ 98.15
2	WP9760576		Hinge, Door (l.side (s.stl Mdl))   (Replaces: 9760576)			Immediately	$ 50.81
2	WP9760572		Hinge, Door (l.side)   (Replaces: 9760572)				$ 95.97
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
4	4451721		Insulation, Door				$ 37.62
5	4457131		Retainer, Glass				$ 31.95
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	9759224		Glass, Inner				$ 81.28
8	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
9	WPW10132940		Screw   (Replaces: 3196184)				$ 8.50
10	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
12	4452315		Door Glass, Assy (stainless Steel)				$ 274.20
12	4455394		Door Glass, Assy (biscuit)		Appelez-nous	-
12	4455392		Door Glass, Assy (white)		Appelez-nous	-
12	4455393		Door Glass, Assy (black)		Appelez-nous	-
13	4452500		Door Handle (black)		Appelez-nous	-
13	4452501		Door Handle (white)		Appelez-nous	-
13	4452870		Door Handle (biscuit)		Appelez-nous	-
13	4455850		Door Handle (stainless Steel)		Appelez-nous	-
14	4455803		Bracket, Handle (right Hand)				$ 30.70
14	4455804		Bracket, Handle (left Hand)				$ 25.95
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 160.71
16	9759230		Bracket (3rdglass)				$ 36.30
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4457102		Shield, Heat				$ 31.70
21	4452325		Seal, Door Top				$ 32.70
22	4457113		Shield, Heat (bottom)				$ 33.29
23	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
23	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
23	4452119		Retainer, Glass-clip (biscuit)		Appelez-nous	-
23	4451432		Retainer, Glass-clip (s.steel)		Appelez-nous	-
24	9759227		Glass. Inner				$ 81.36

    View Diagram in Separate Window       Print Part List
