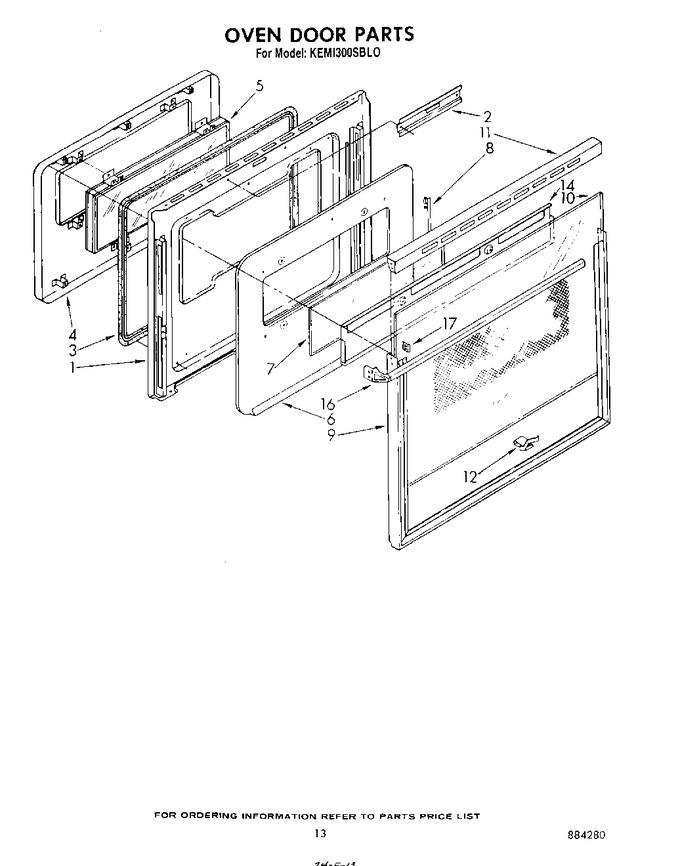

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329694		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
1	311056		Screw (2)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
2	247326		Screw (2)		Appelez-nous	-
3	311904		Seal, Fiberglass		Appelez-nous	-
4	327898		Panel, Inner		Appelez-nous	-
5	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
5	330038		Window Package		Appelez-nous	-
6	308021		Retainer, Insulation		Appelez-nous	-
6	307748		Screw, 10a X 1/2 (8)		Appelez-nous	-
7	309842		Glass (6.81`` X 18.31``)		Appelez-nous	-
8	309843		Retainer, Glass		Appelez-nous	-
9	314325		Frame, Door		Appelez-nous	-
10	309069		Glass, Outer		Appelez-nous	-
11	314250		Top, Door Frame		Appelez-nous	-
11	307748		Screw, 10a X 1/2 (2) (black)		Appelez-nous	-
12	314234		Clip, Glass (10)		Appelez-nous	-
14	309056		Baffle, Heat		Appelez-nous	-
14	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
16	247326		Screw (2)		Appelez-nous	-
16	3147636		Handle, Oven Door		Appelez-nous	-
16	WP355515		Screw, 8 X 7/8 (4)   (Replaces: 355515)				$ 6.90
17	314235		Clip (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
