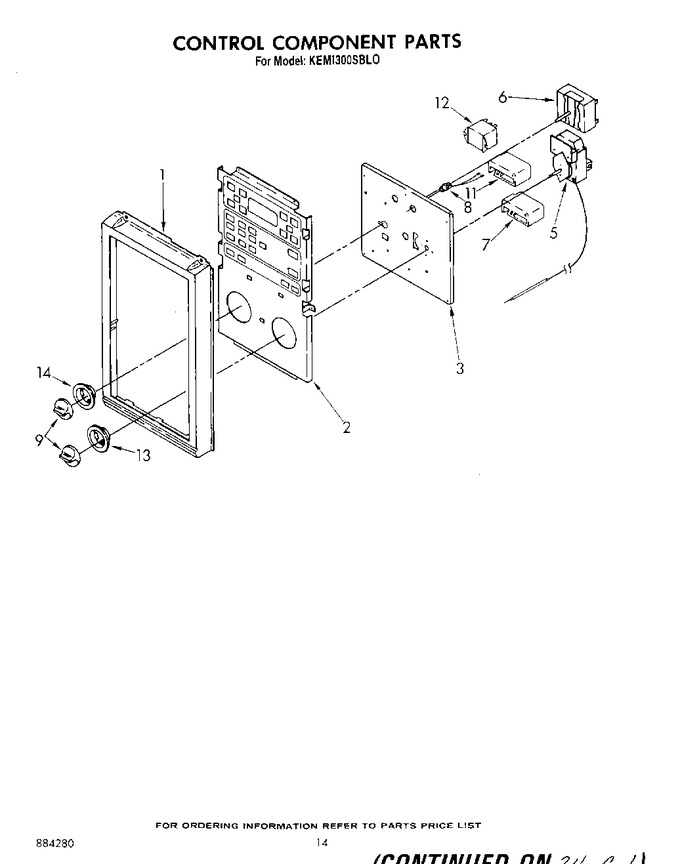

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 314088 | Frame, Control Panel |
|
- | |||||
| 2 | 308119 | Screw, 8-32 X 3/16 (6) |
|
- | |||||
| 2 | 3147199 | Switch Membrane (control Module) |
|
- | |||||
| 3 | 308119 | Screw, 8-32 X 3/16 (4) |
|
- | |||||
| 3 | 3147282 | Bracket, Control (mounting) |
|
- | |||||
| 5 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 6.84 | |||||
| 5 | 313534 | Thermostat |
|
- | |||||
| 6 | 312289 | Switch, Selector |
|
- | |||||
| 7 | 314215 | Screw |
|
- | |||||
| 7 | 314211 | Switch, Bake |
|
- | |||||
| 8 | 3147517 | Light, Indictor (4) |
|
- | |||||
| 9 | 314222 | Knob, Control (2) |
|
- | |||||
| 11 | 314209 | Switch, Broil |
|
- | |||||
| 11 | 314215 | Screw |
|
- | |||||
| 12 | 314125 | Relay, Power |
|
- | |||||
| 12 | 246131 | Screw, 6ab X 3/8 (2) |
|
- |
